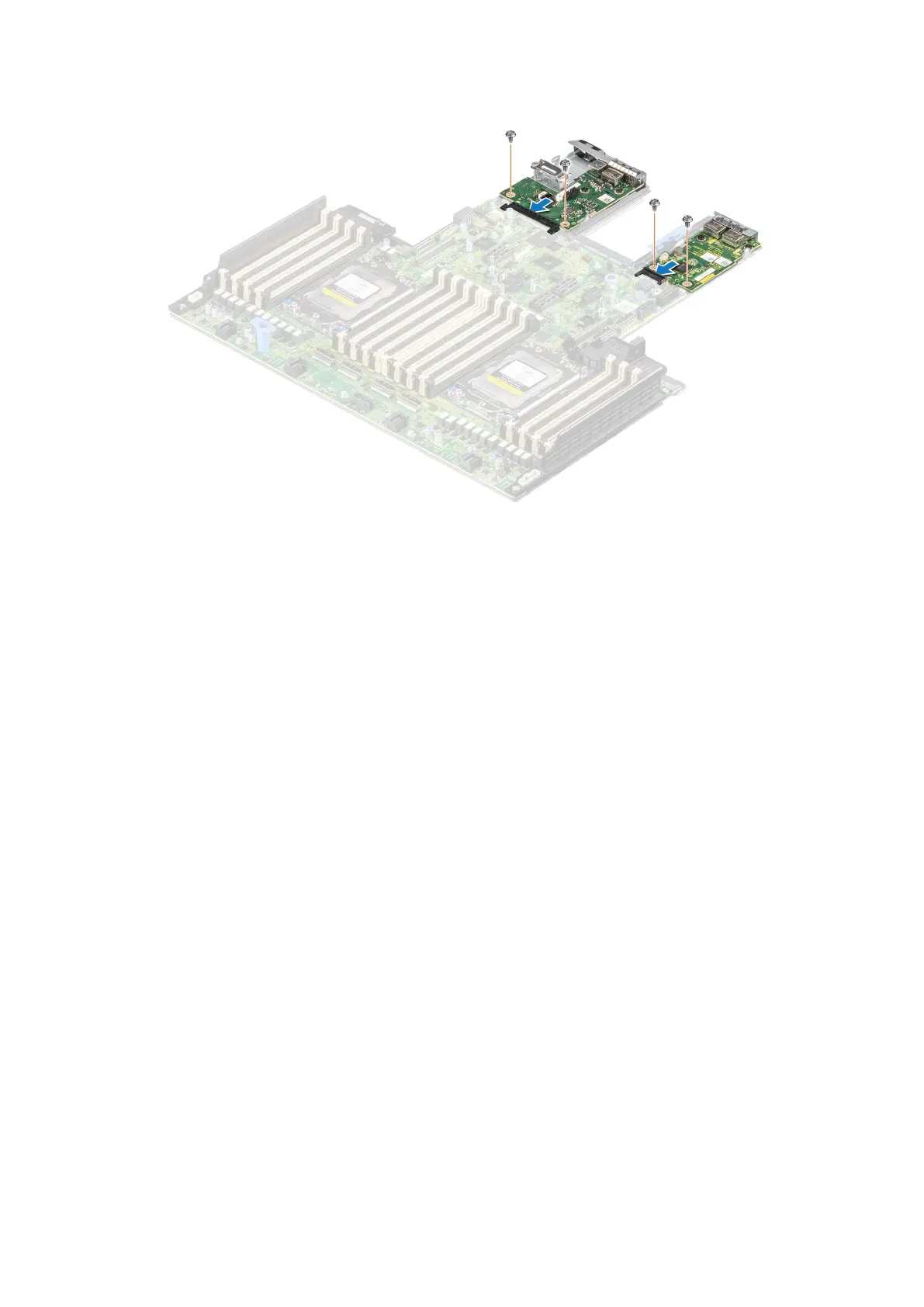

Figure 134. Installing the RIO card
Next steps
1. Install the system board.
2. Follow the procedure listed in After working inside your system.
Tube clip
Removing the tube clip
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the system cover.
Steps
Using a Phillips #2 screwdriver, loosen the screw that is securing the tube clip and remove it from the chassis.
148
Installing and removing system components
