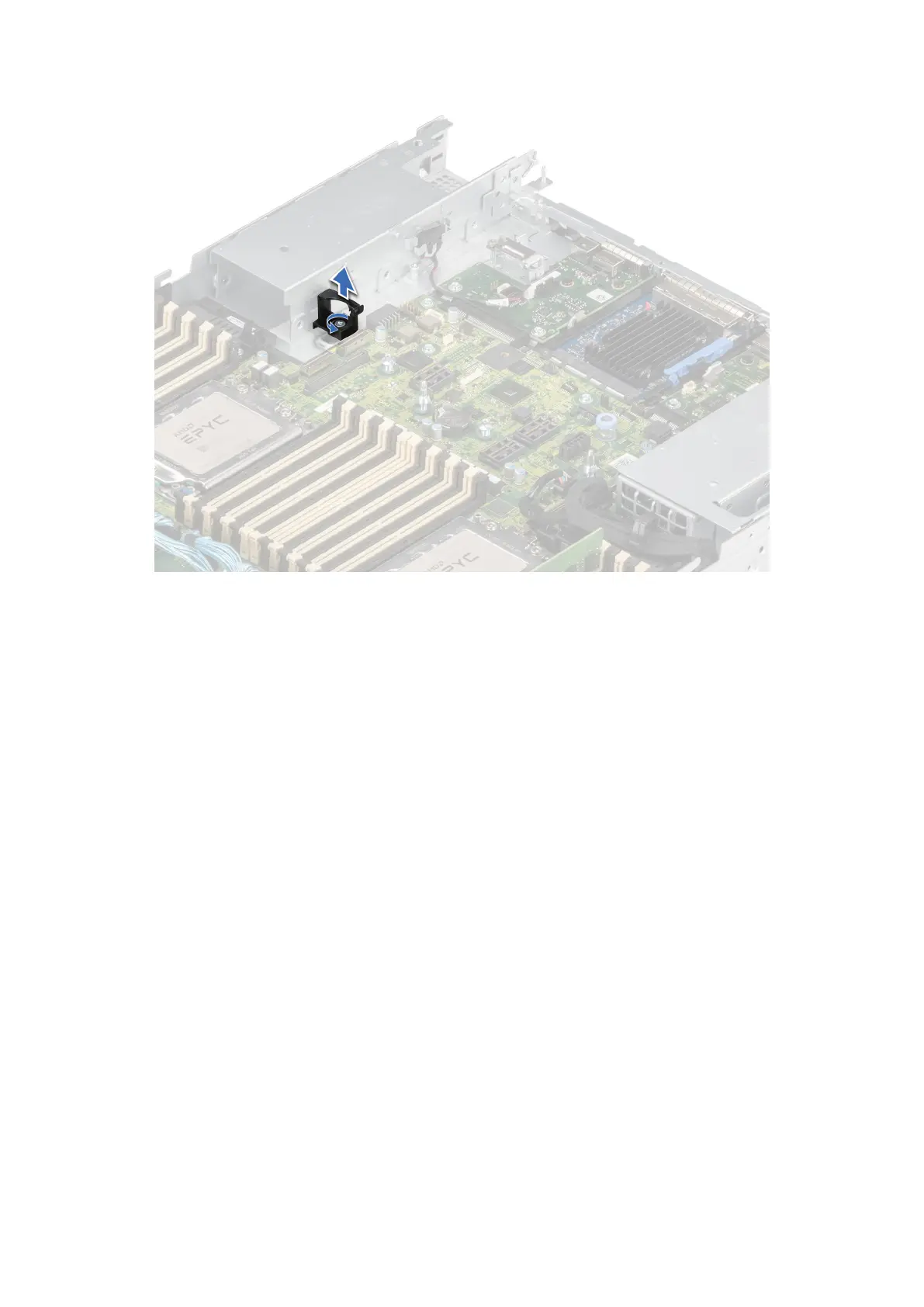

Figure 135. Removing the tube clip
Next steps
1. Replace the tube clip.
Installing the tube clip
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the system cover.
Steps
1. Place the tube clip onto the chassis according to the guide pins.
2. Using a Phillips #2 screwdriver, secure the tube clip to the chassis with the screw.
Installing and removing system components
149
