Cable routing

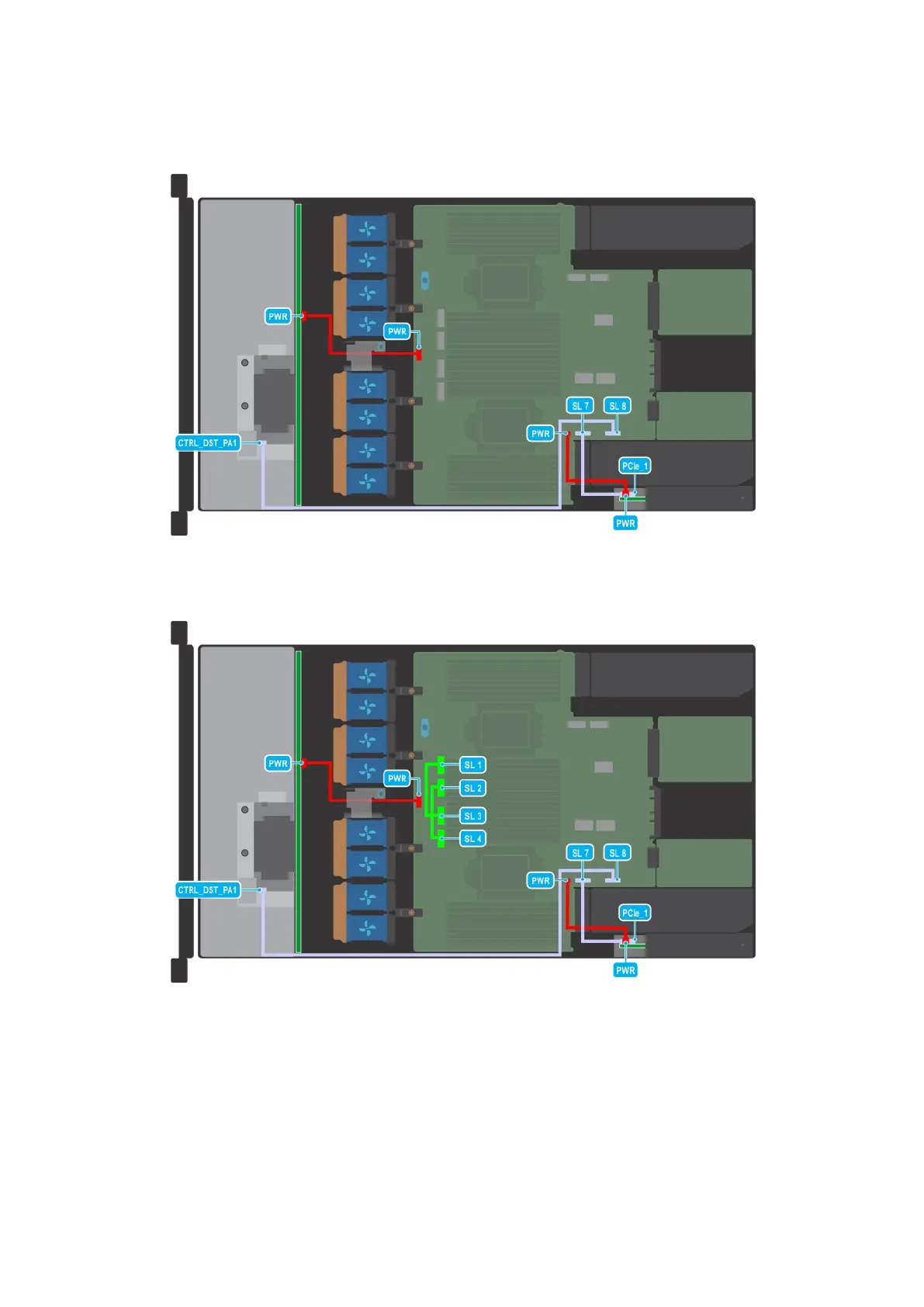

Figure 44. 4 x 3.5-inch SAS with one processor and front PERC module
Figure 45. 4 x 3.5-inch SAS with dual processor and front PERC module
52
Installing and removing system components
