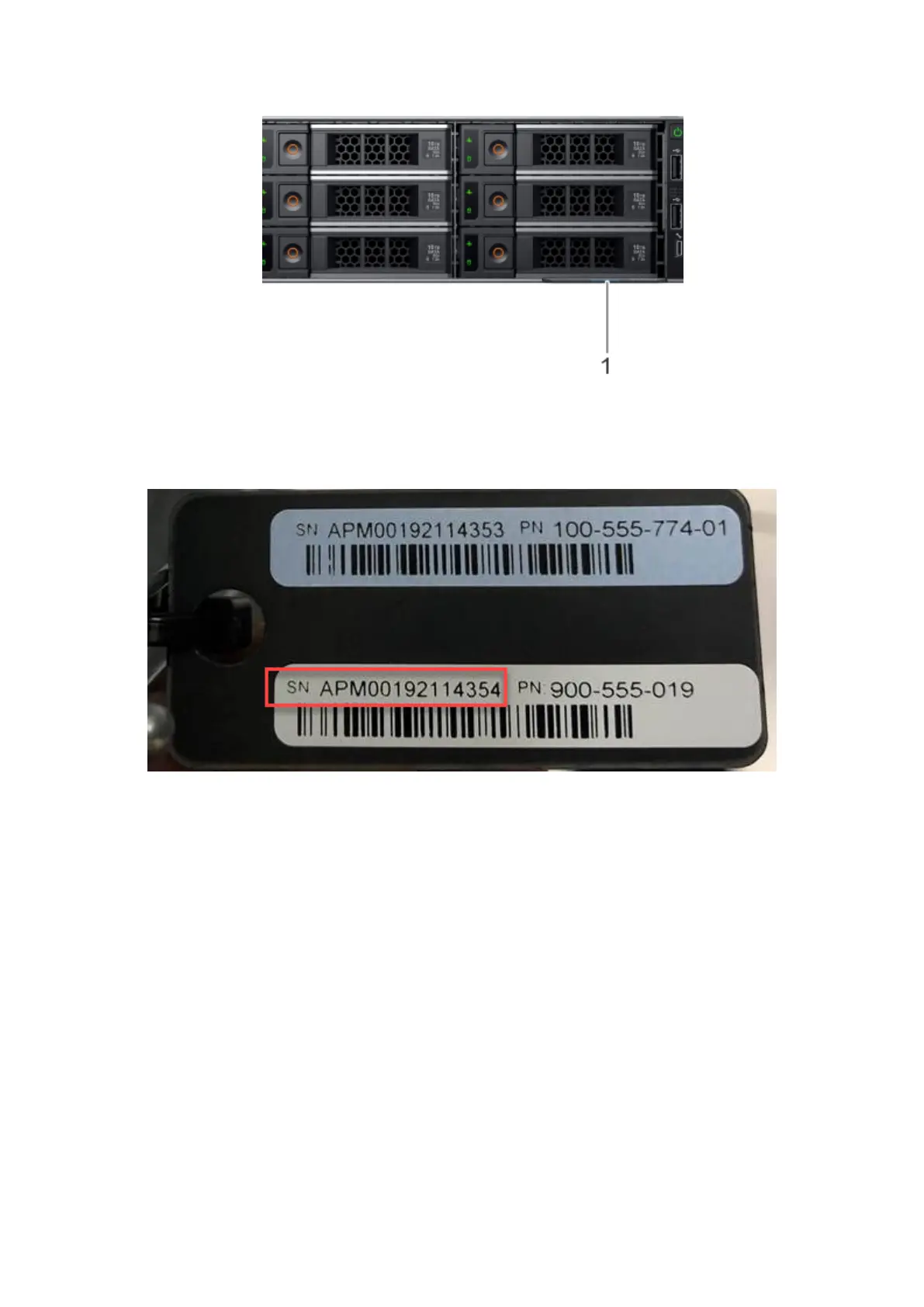

Figure 2. Front tag
There are two labels on each tag:
● The top label is blue and contains the serial number for the system top level assembly (TLA).
● The bottom label is white and contains the product serial number required for the initial password.
Figure 3. Serial number for initial password
Required tools and supplies
Ensure that you have the required tools and supplies on hand for the PowerProtect system installation.
You will need:
● Antistatic wrist strap and conductive foam pad
● Screwdrivers:
○ Phillips #1
○ Phillips #2 with a 4- to 6-inch blade and a magnetic tip
○ Phillips #2 with a 12 in. or longer blade and magnetic tip
○ Flat head with a 3/16 in. blade
○ Flat head with a 1/4 in. blade
○ Torque
● Flashlight (free-standing for single-person installations)
● Roll of 5/8 inch Velcro cable tie material (3M Scotchmate SJ-3401 or similar)
● Null modem cable with DB-9 female connector to connect a service laptop to the PowerProtect system.
The following additional tools and supplies might be needed when working with PowerProtect systems:
● Torque screwdriver
10
Introduction and Preparation
