● AC or DC power supply with airflow from the I/O side to the PSU side—normal airflow.
● AC or DC power supply with airflow from the PSU side to the I/O side—reverse airflow.
Luggage tag
The switch has a pull-out tag, known as a luggage tag, on the PSU-side of the switch. The front of the luggage tag includes
switch ID information. The back of the luggage tag includes a QRL that takes you to a How-To site where you can watch videos
about racking the switch, replacing components, configuring port channels, and so on.

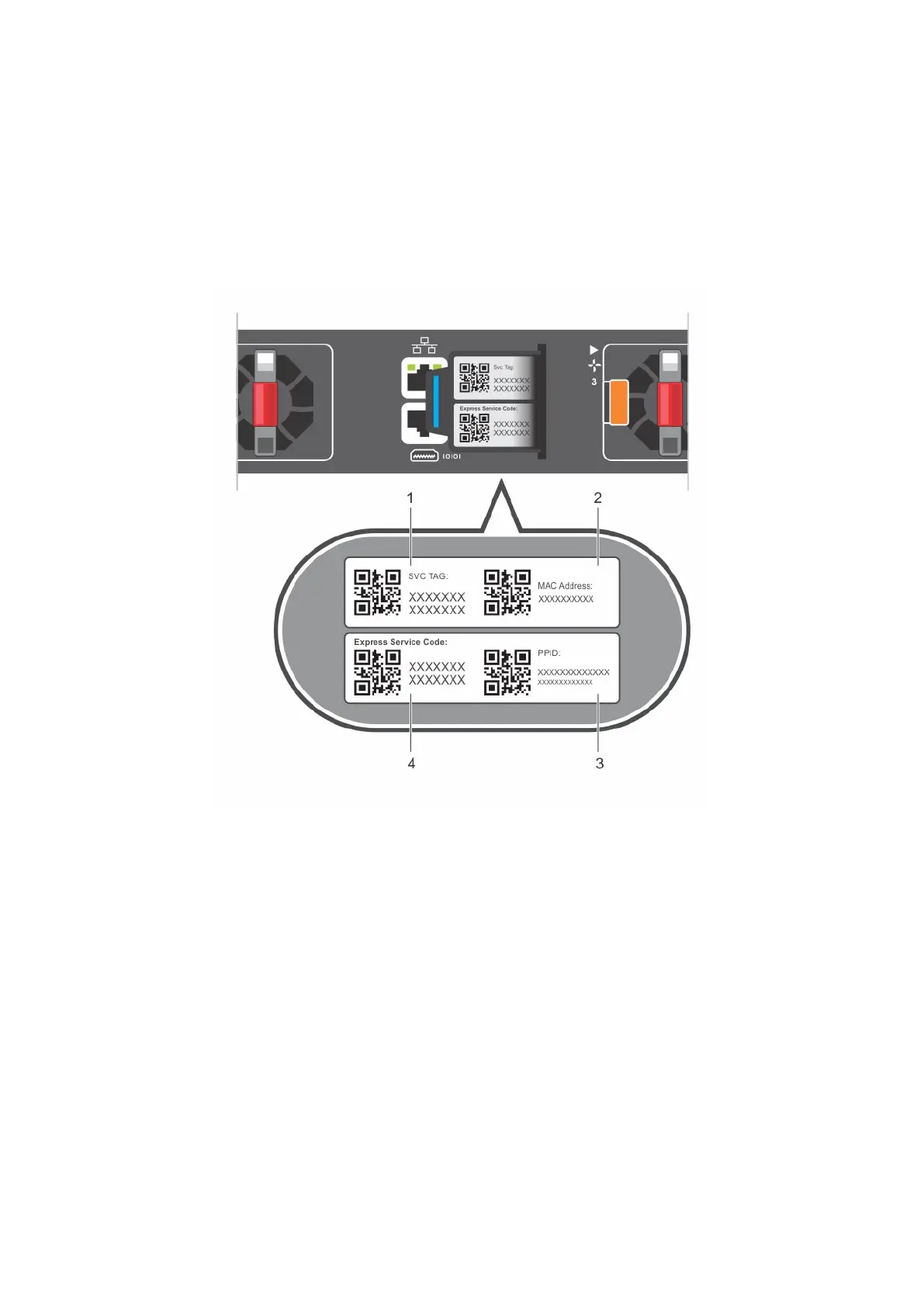

Figure 4. S5148F-ON switch luggage tag
1.
Service tag 2. MAC address
3. PPID 4. Express service code
12 S5148F-ON switch
