LED behavior
The following S5148F-ON switch LED behavior is seen during open networking installation environment (ONIE) operations:

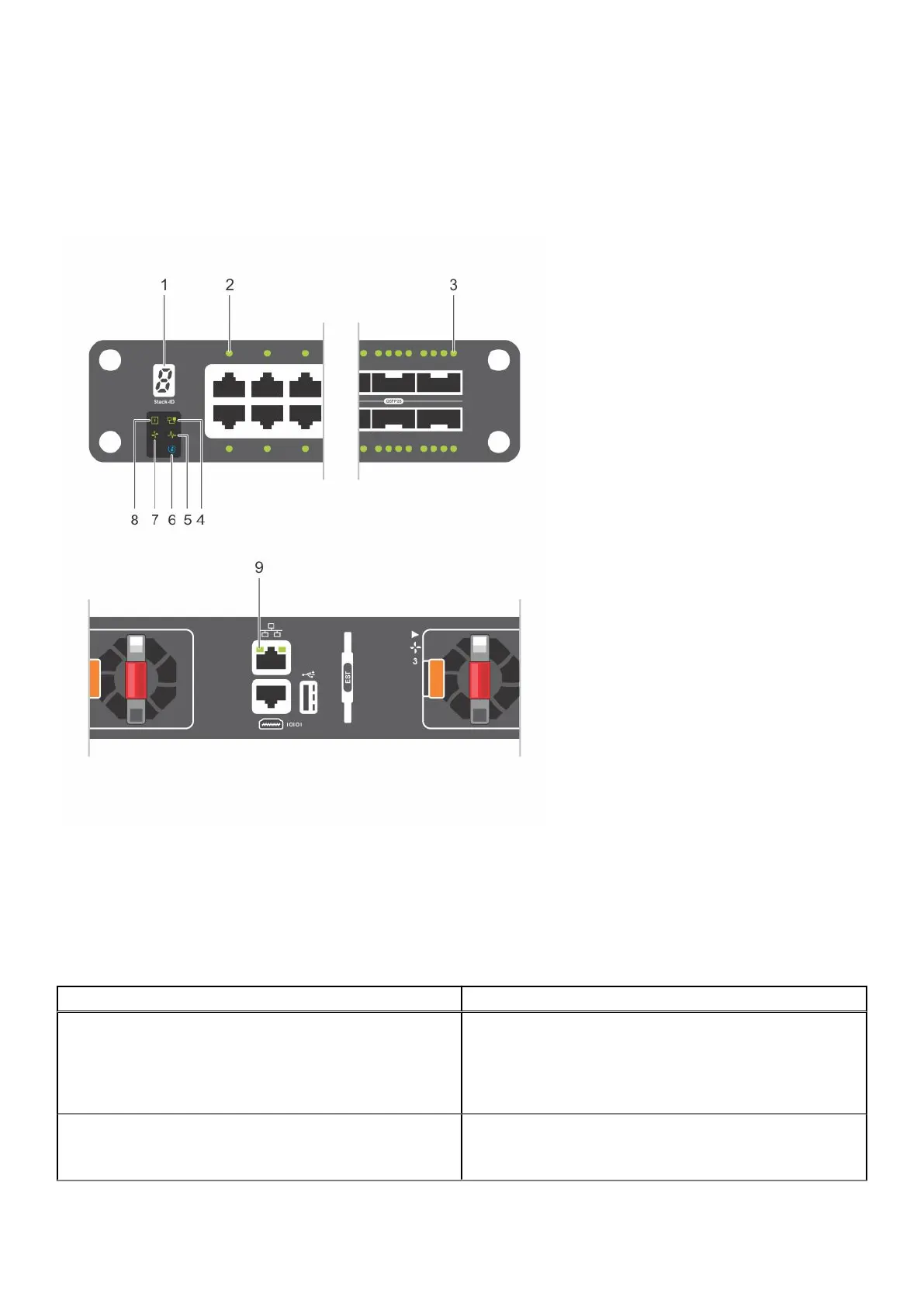

S5148F-ON LEDs
1. Stack ID LED 2. Port Activity LED
3. Port Activity LED 4. Master LED
5. System LED 6. Locator LED
7. Fan LED 8. Power LED
9. RJ-45 Ethernet Port LED: Left is activity; right is link.
Table 1. S5148F-ON switch LED behavior
LED Description
System Status/Health LED
● Solid green—Normal operation
● Blinking green—Booting
● Solid yellow—Critical system error
● Blinking yellow—Noncritical system error, fan failure, or
power supply failure
Power LED
● Off—No power
● Solid Green—Normal operation
● Solid yellow—POST is in process
S5148F-ON switch 9
