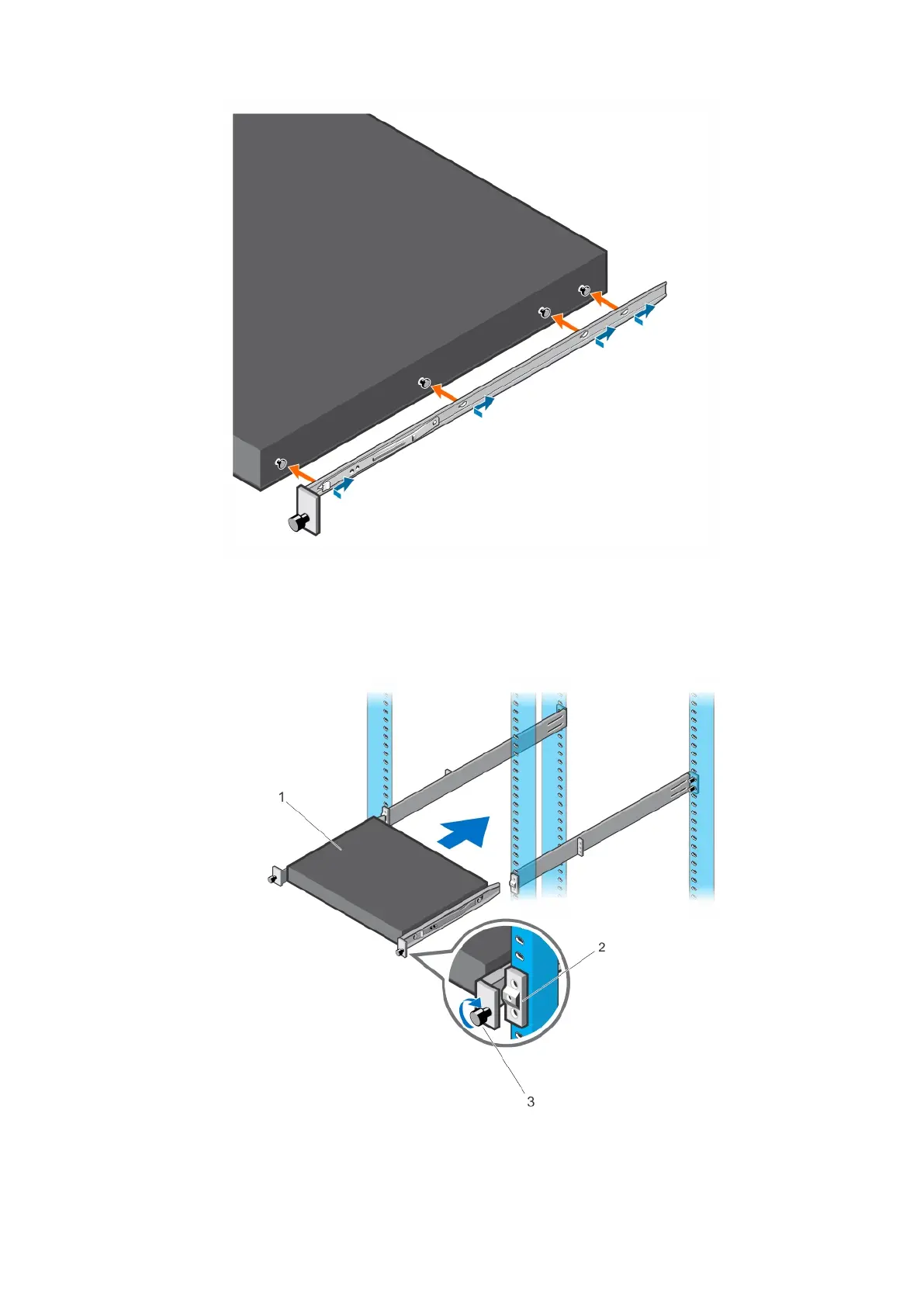

Figure 13. Attach switch rail
2. After installing both switch rails, line them up on the previously mounted ReadyRails and slide the switch in until it is flush
with front of rack. To keep the switch from inadvertently sliding out of the rack and falling, about 3 inches before you fully
insert your switch, the rail locking feature engages.
Figure 14. Front rack installation
24
S5148F-ON switch installation
