Dell EMC VxFlex Ready Node R740xd Owner's Guide

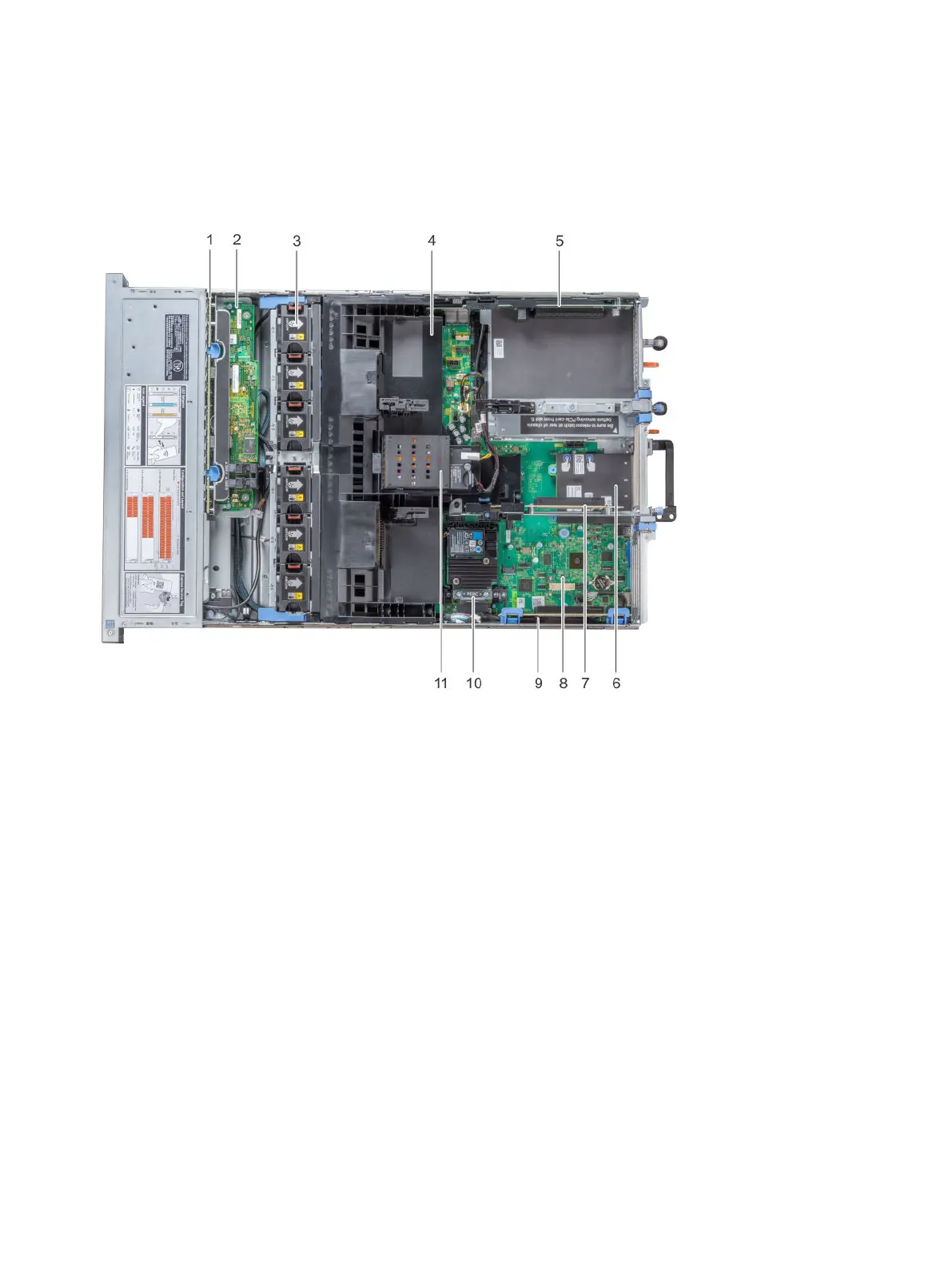

Figure 7 Inside your R740xd system
1. drive backplane
2. backplane expander card
3. cooling fan (6) in the cooling fan assembly
4. air shroud
5. expansion card riser 3
6. network daughter card
7. expansion card riser 2
8. system board
9. expansion card riser 1
10. integrated storage controller card
11. NVDIMM-N battery
VxFlex appliance and VxFlex Ready Node R740xd system overview
R740xd Owner's Guide 15

Dell EMC VxFlex Ready Node R740xd Specifications

General

Form Factor	2U rack server
Operating System Support	VMware ESXi, Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Processor	Intel Xeon Scalable processors (up to 28 cores)
Memory	Up to 3TB DDR4
Storage	Up to 24 x 2.5"
RAID Controller	PERC H730P, H740P
Power Supply	1100W
Network	Dual-port 10GbE or 25GbE NIC options
