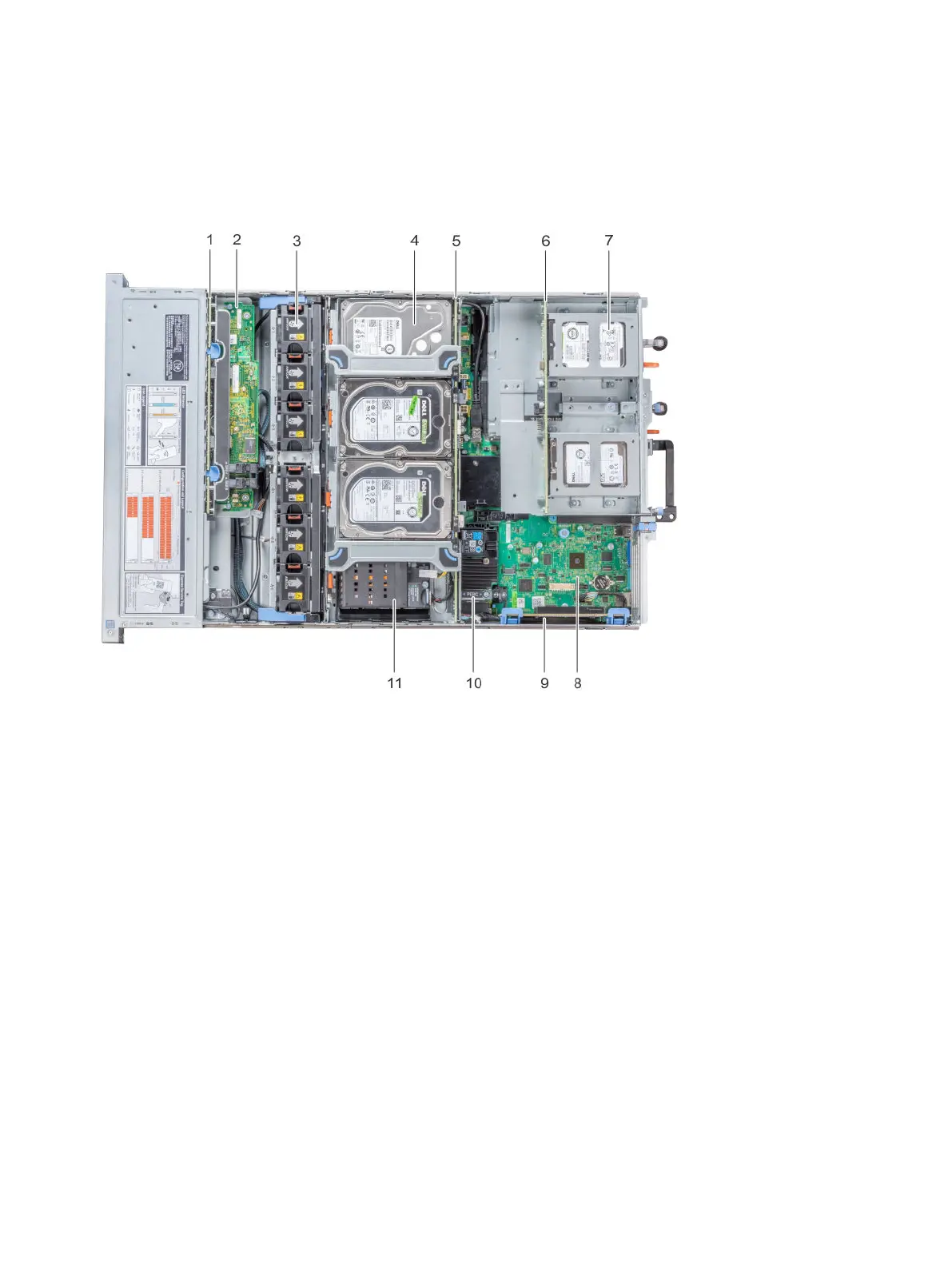

Figure 8 Inside the system with mid-drive tray and rear drive cage (VxFlex Ready Node only)
1. drive backplane
2. backplane expander card
3. cooling fan (6) in the cooling fan assembly
4. drive (4) in the mid drive tray
5. mid drive backplane
6. rear drive backplane
7. drive (2 or 4) in the rear drive cage
8. system board
9. expansion card riser 1
10. integrated storage controller card
11. NVDIMM-N battery
VxFlex appliance and VxFlex Ready Node R740xd system overview
16 R740xd Owner's Guide
