Dell Force10 S55 - Replace a Fan Module

32 | Fans
www.dell.com | support.dell.com

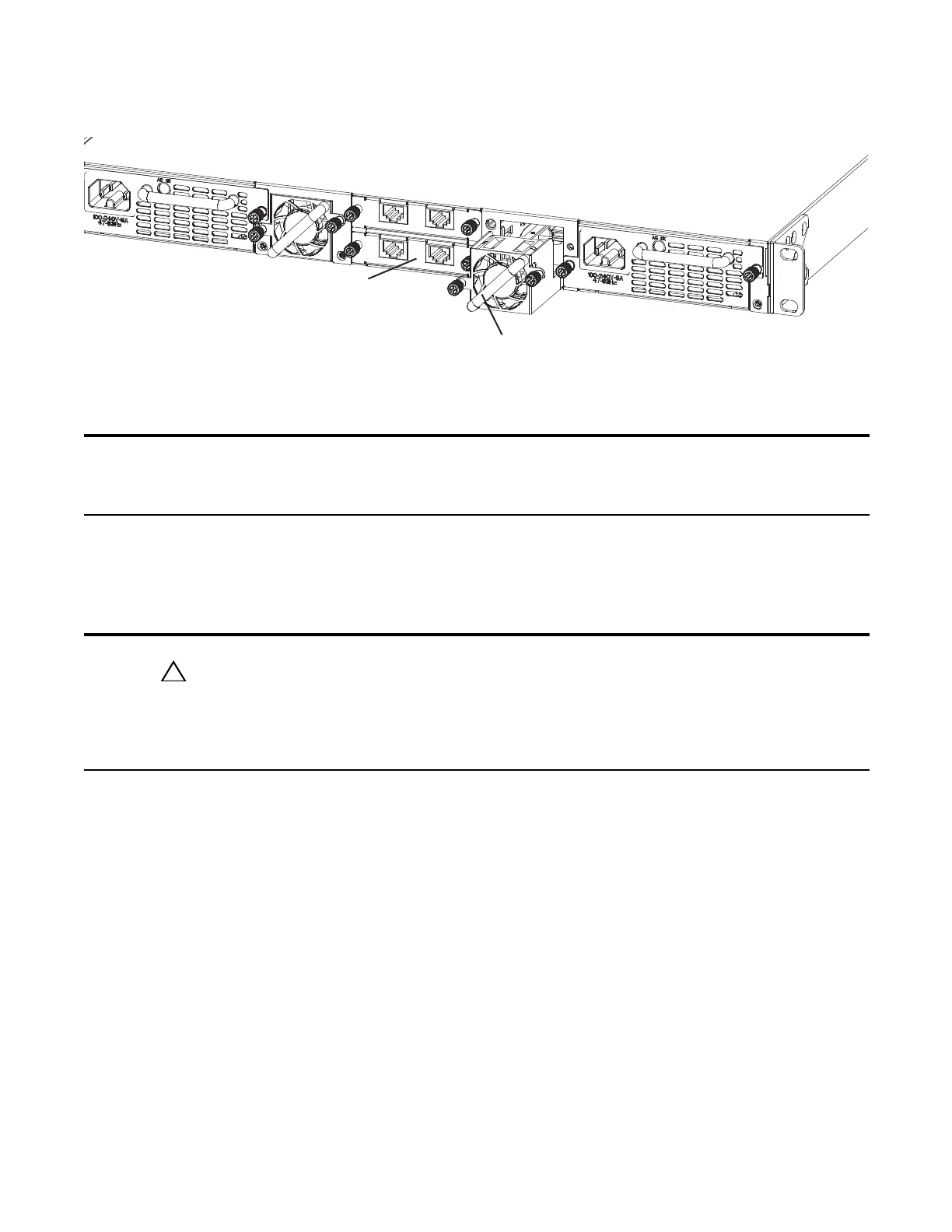

Figure 6-1. Replacing the fan module
To install a new fan module, follow the steps below:
Replace a fan module
To replace a fan module, follow the steps below.
Step Task
1 Take the fan module out of the shipping box.
2 Using the grab handle, slide the module in to the bay.
3 Tighten the securing screw at the top of the module.
Step Task
1 Loosen the securing screw at the top of the unit.
CAUTION: Steps 2-3 must be completed in within 1 minute, or the chassis will power down.
2 Use the grab handle to slide the module out of the bay.
3 Using the grab handle on the replacement module, slide it into the bay.
4 Tighten the captive screws on the module with a screwdriver. Ensure that the module is secure.
Grab Handle
PSU0
PSU1
Optional
Module
