Access the console ports
The S55 system can be accessed directly through the console port at I/O side of the switch.
Access the RJ45 console port (RS-232)
NOTE: Before starting this procedure, be sure you have a terminal emulation program already installed on
your PC.
The RS-232 console port is labeled on the S55 chassis. It is in the upper right-hand side, as you face the
I/O side of the chassis.

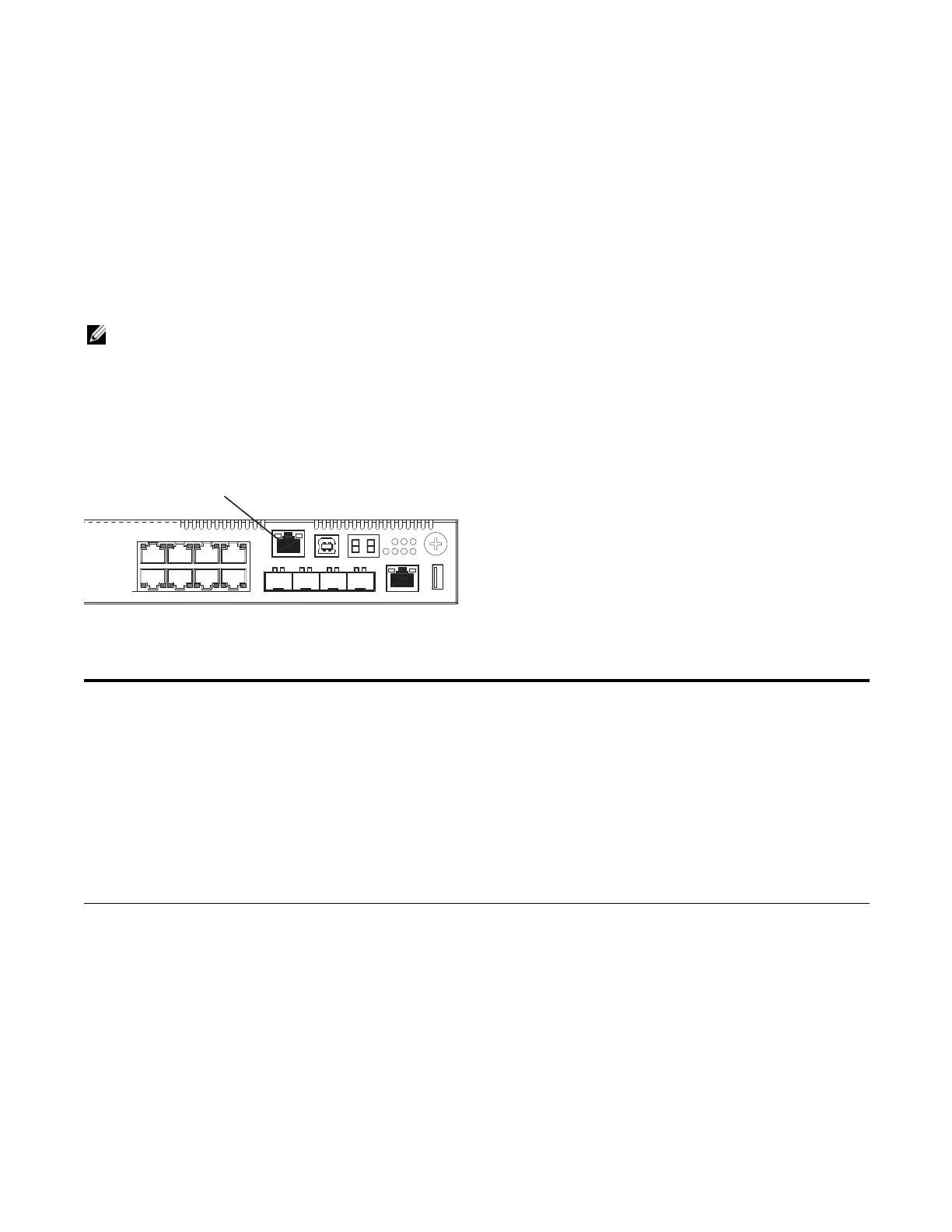

Figure 7-1. S55 serial console port connector
To access the console port, follow the procedures below. Refer to
Table 7-1
for the console port pinout.
Step Task
1 Install an RJ-45 copper cable into the console port. Use a rollover cable to connect the S55 console port to a
terminal server.
2 Connect the other end of the cable to the DTE terminal server.
3 Default terminal settings on the console are set as follows:
• 9600 baud rate
• No parity
• 8 data bits
• 1 stop bit
• No flow control
RJ-45
Console Port
