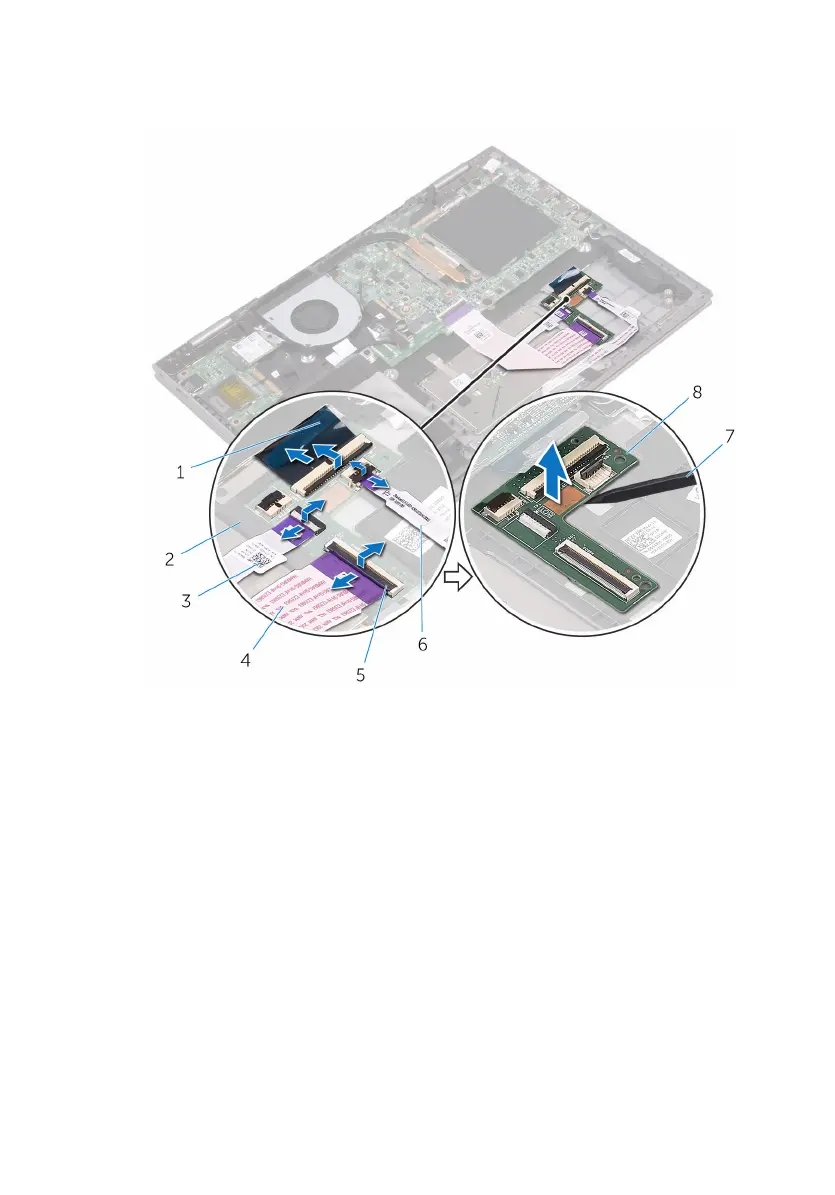

2 Using a plastic scribe, pry the keyboard daughter-board off the palm-rest

assembly.

1 keyboard cable 2 palm-rest assembly

3 touch-pad cable 4 keyboard daughter-board

cable

5 latch 6 status-light board-cable

7 plastic scribe 8 keyboard daughter-board
