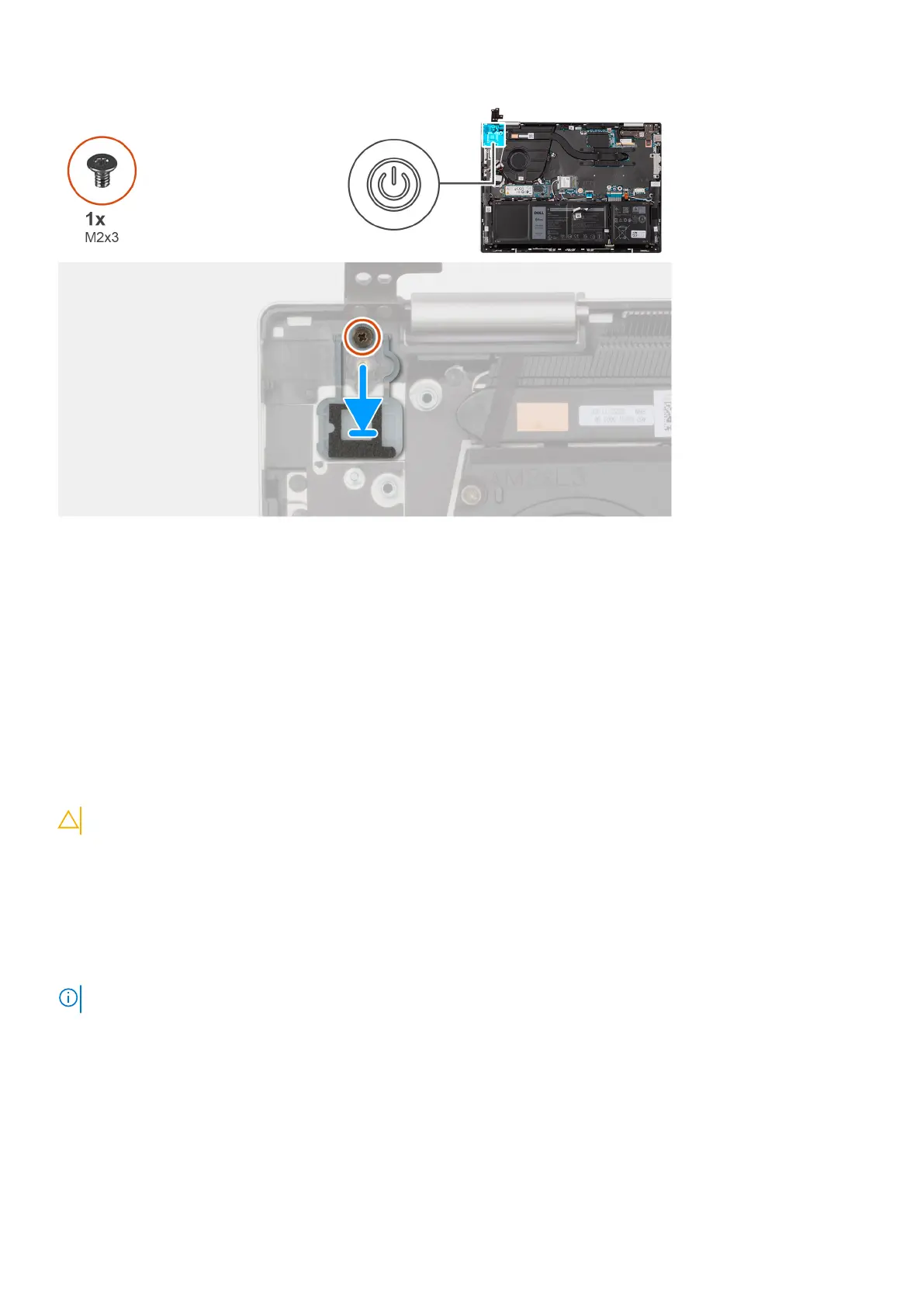

Steps
1. Place the power-button into its slot on the palm-rest and keyboard assembly.
2. Align the screw hole on the power-button with the screw hole on the palm-rest and keyboard assembly.
3. Replace the screw (M2x3) that secures power-button to the palm-rest and keyboard assembly.
Next steps
1. Install the I/O board.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Removing the power-button with fingerprint reader
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the I/O board.
About this task
NOTE: This procedure is applicable only for computers that are shipped with a fingerprint reader on the power-button.
The following images indicate the location of the power-button with fingerprint reader and provides a visual representation of
the removal procedure.
Removing and installing Field Replaceable Units (FRUs)
55
