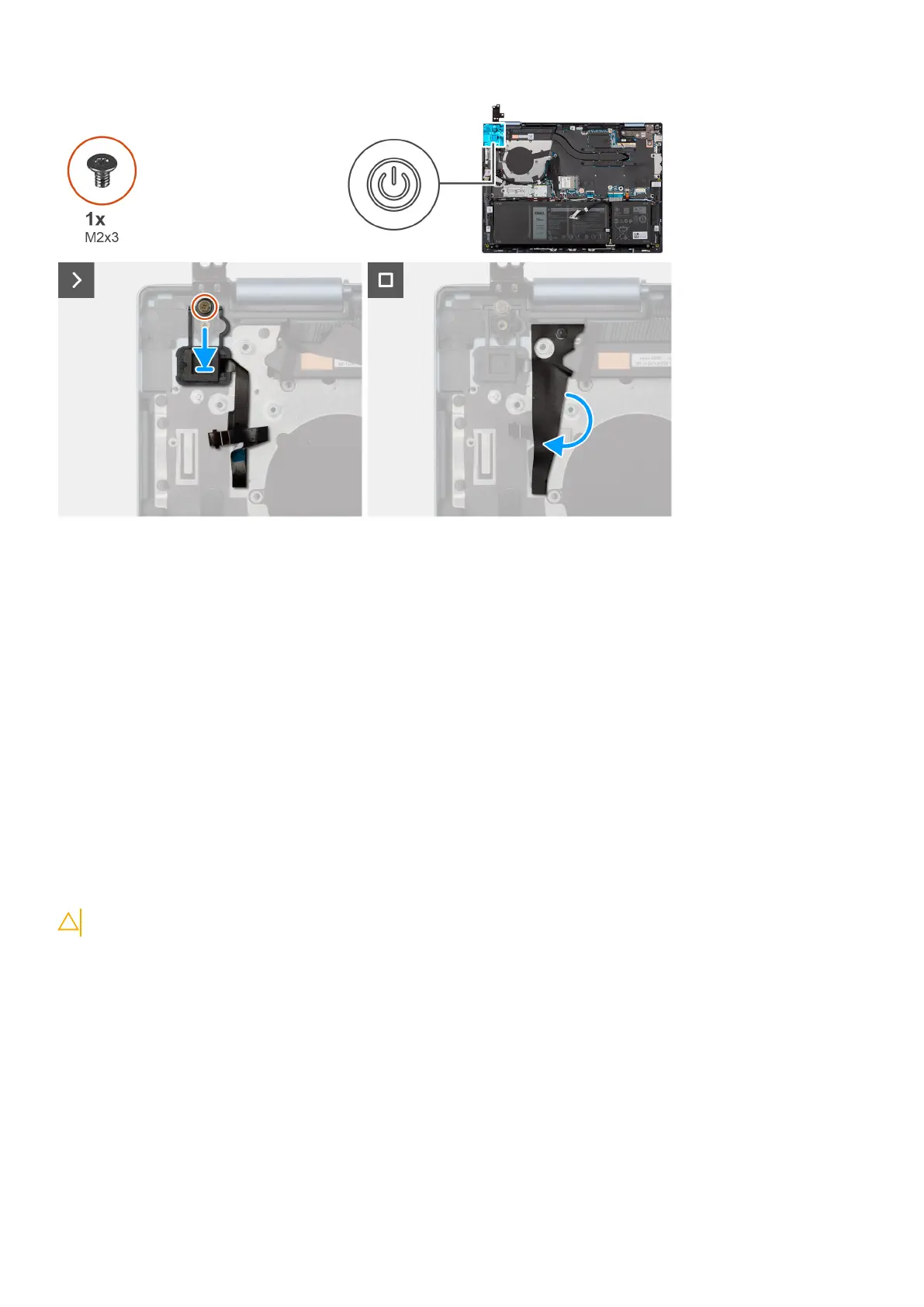

Steps
1. Align and place the power-button, along with the fingerprint-reader cable, into its slot on the palm-rest and keyboard
assembly.
2. Align the screw hole on the power-button with the screw holes on the palm-rest and keyboard assembly.
3. Replace the screw (M2x3) that secures power-button to the palm-rest and keyboard assembly.
4. Adhere the mylar over the fingerprint-reader cable, securing it to the palm-rest and keyboard assembly.
Next steps
1. Install the I/O board.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Touchpad
Removing the touchpad
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task
The following images indicate the location of the touchpad and provides a visual representation of the removal procedure.
Removing and installing Field Replaceable Units (FRUs)
57
