Dell Latitude 7490 - Page 43

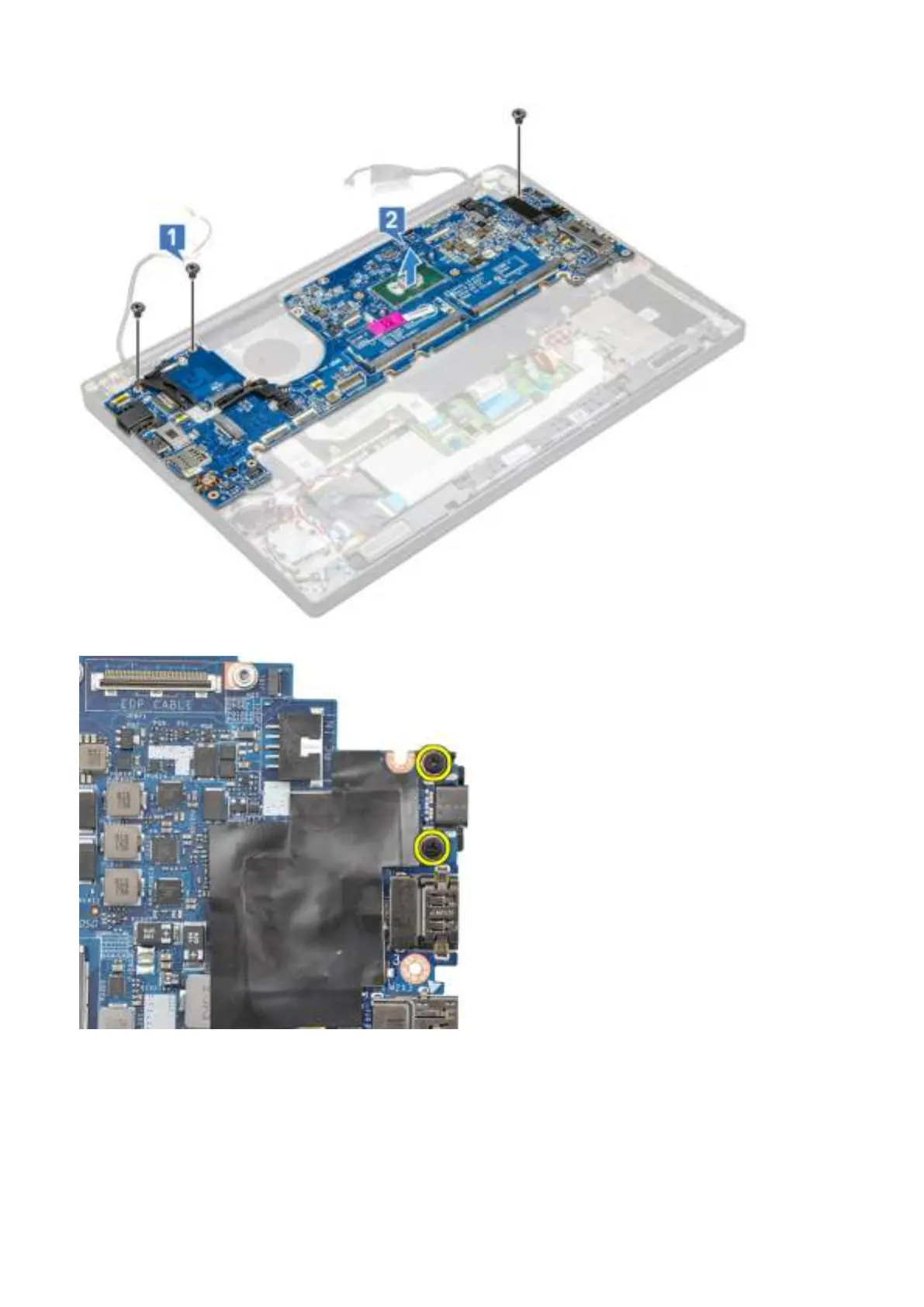

15. Remove the two (M2.0x5.0) screws that secure the USB Type-C bracket.
16. Flip the system board, peel off the tapes securing the bracket and remove the USB Type-C port from the system board.
Removing and installing components 43
