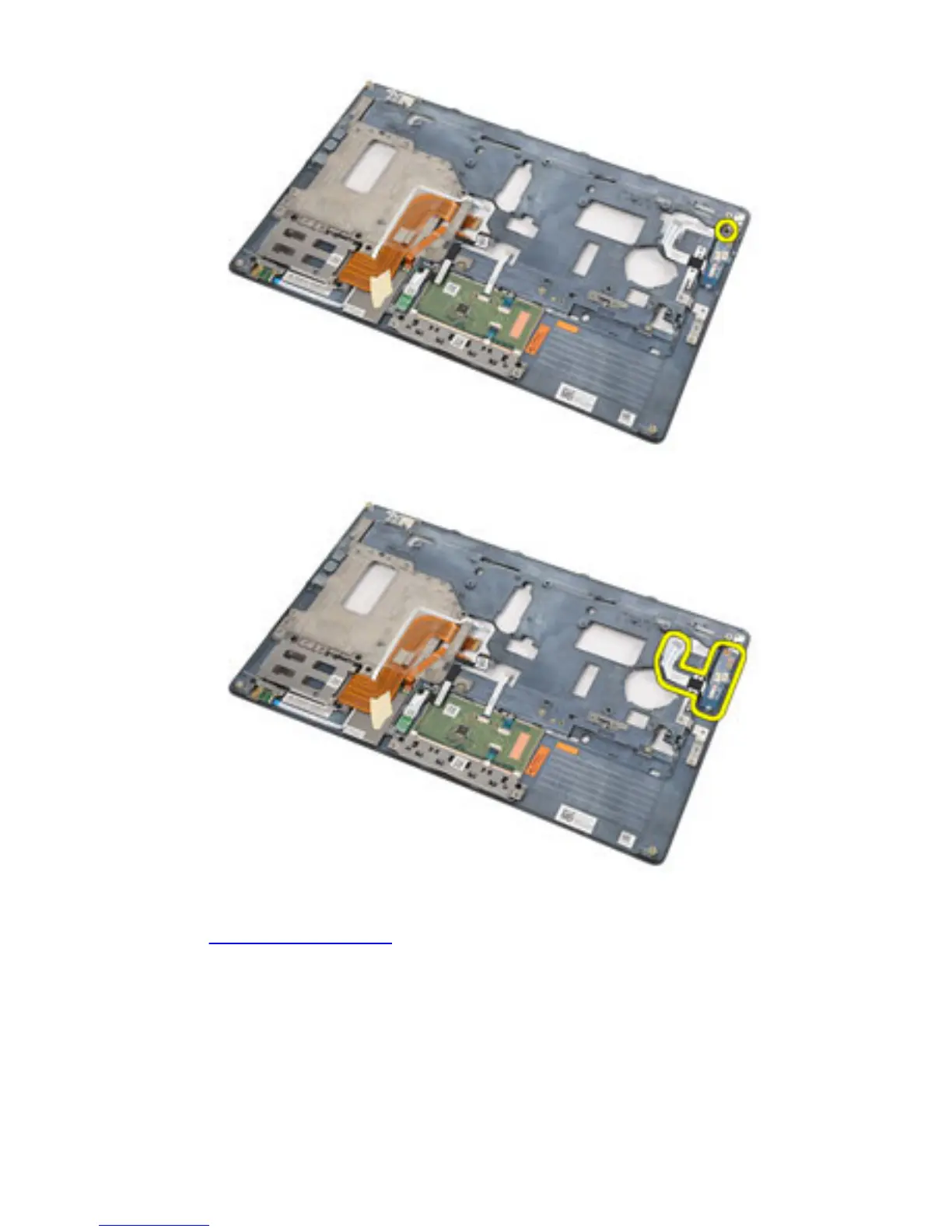

13. Remove the LED board from the palm rest assembly.
Related Links
Installing The LED Board
Installing The LED Board
1. Align the LED board on the palmrest.
2. Replace and tighten the screw that secure the LED board to the palmrest.
3. Route the LED board cable to its original position.
62
