Adding and Replacing Parts 125
5
Install the replacement modem:
a
Connect the modem cable to the modem.
NOTICE: The connectors are keyed to ensure correct insertion. If you feel resistance, check the connectors and
realign the card.
b
Align the modem with the screw holes and press the modem into the connector on the system
board.
c
Replace the screw that secures the modem to the system board.
6
Replace the Mini-Card/modem cover.

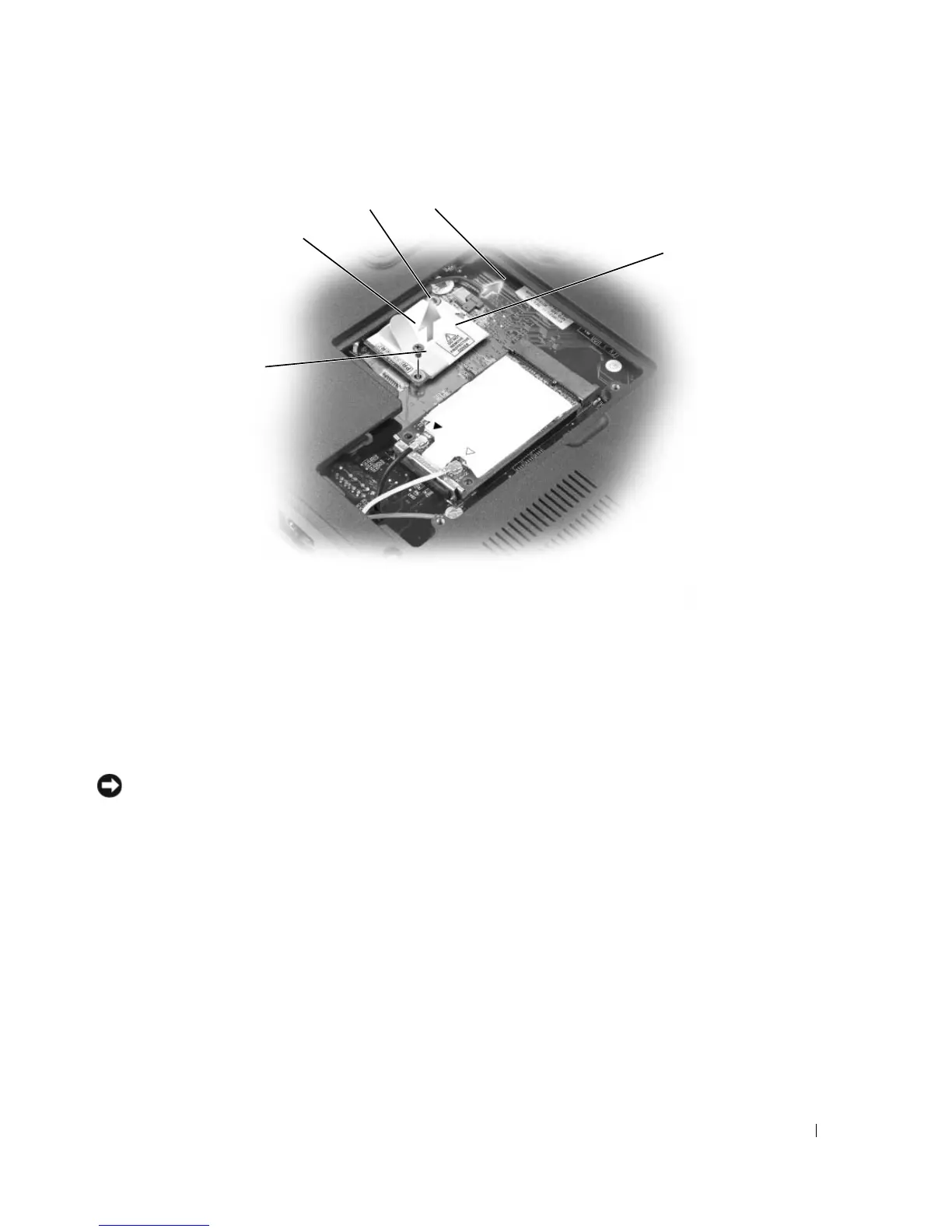

1 modem 2 modem pull-tab 3 modem cable
4 modem screw 5 modem connector on system
board
1
5
2
4
3
