Dell Networking N3048 User Manual

10 Expansion Modules for Dell Networking Switches
3.1.2 Dell Networking M8024

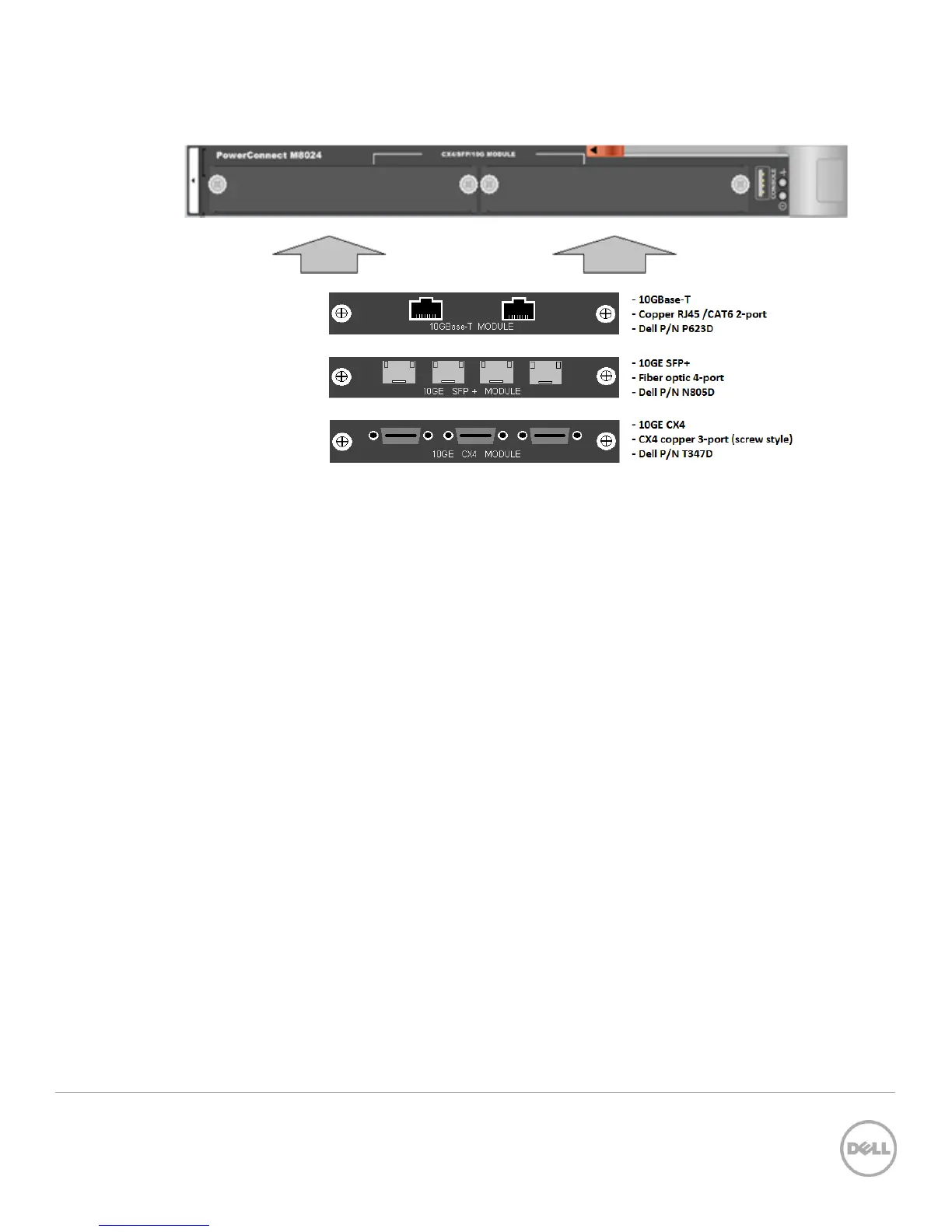

Figure 3 Dell Networking M8024 Blade Switch (10G Ethernet) and Available Modules
The Dell Networking M8024 and M8024-k switches support the same expansion modules. All three modules can be
installed into either bay on the M8024.

Dell Networking N3048 Specifications

General

Model	Dell Networking N3048
Ports	48 x 10/100/1000BASE-T
Switching Capacity	176 Gbps
Forwarding Rate	131 Mpps
MAC Address Table Size	32, 000 entries
Jumbo Frame Support	Yes
Jumbo Frame Size	9216 Bytes
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to 65°C (-40°F to 149°F)
Rack Units	1U
Manageable	Yes
Input Voltage	100-240 VAC
Humidity	95% non-condensing
Layer	Layer 2 and Layer 3
Dimensions	17.3 x 17.4 x 1.7 inches (440 x 442 x 44 mm)
