Dell Networking N3048 User Manual

14 Expansion Modules for Dell Networking Switches
4.2 Dell Networking N4000 Series (N4032, N4032F,N4064, N4064P)
There are four different switch models in the Dell Networking N4000 series, each with one expansion module located
on the front of the chassis. The following modules are supported:
 4 x 10GBASE-T module
 4 x SFP+ module
 2 x 40G QSFP
The modules are hot-swappable, so modules can be installed without rebooting the switch. The yellow outlines in
Figure 8 show the expansion slot for each switch.

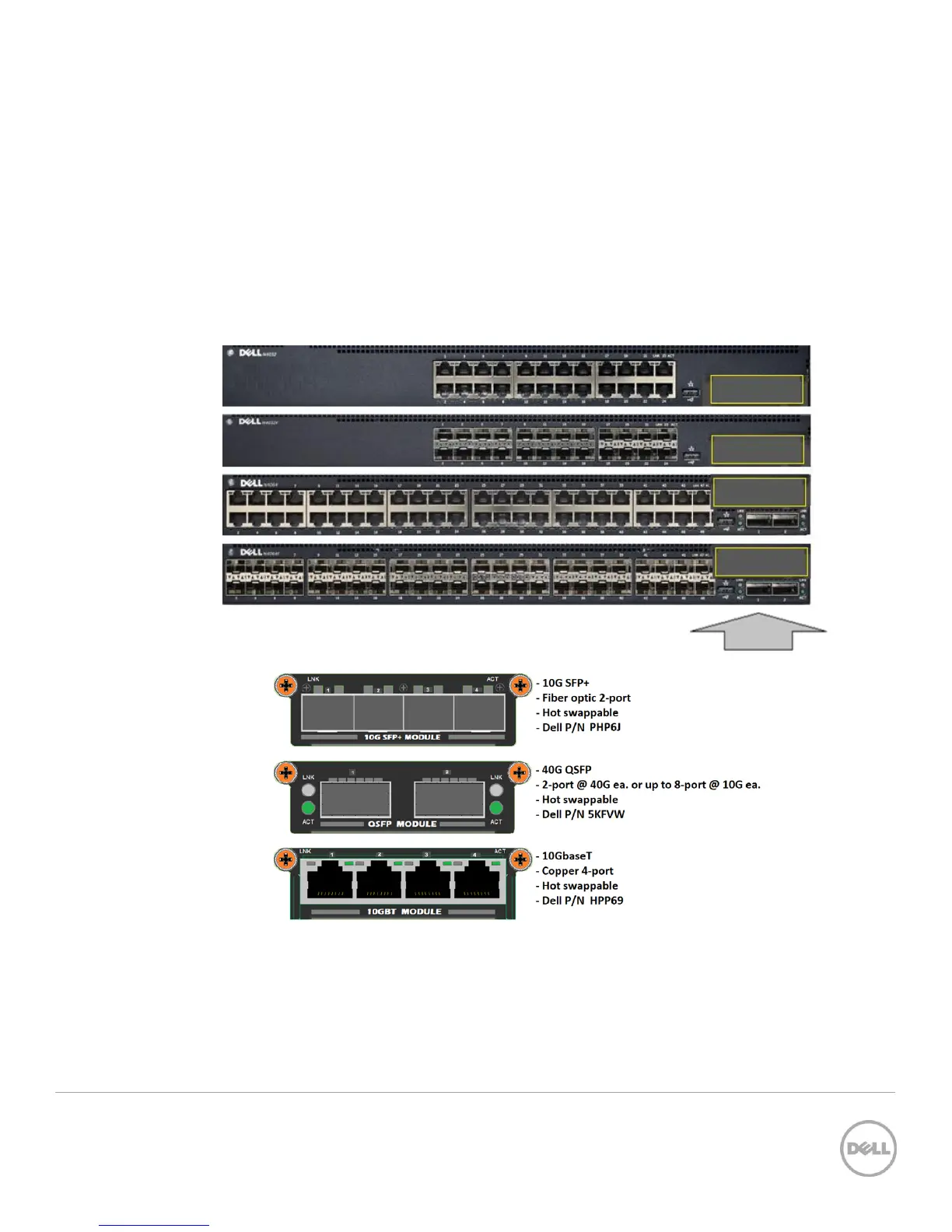

Figure 8 Dell Networking N4000 Series Switch (40/10G Ethernet) and Available Modules
Dell Networking N4000 switches support the same expansion modules as the Dell Networking 81xx and the MXL
modular switch.

Dell Networking N3048 Specifications

General

Model	Dell Networking N3048
Ports	48 x 10/100/1000BASE-T
Switching Capacity	176 Gbps
Forwarding Rate	131 Mpps
MAC Address Table Size	32, 000 entries
Jumbo Frame Support	Yes
Jumbo Frame Size	9216 Bytes
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to 65°C (-40°F to 149°F)
Rack Units	1U
Manageable	Yes
Input Voltage	100-240 VAC
Humidity	95% non-condensing
Layer	Layer 2 and Layer 3
Dimensions	17.3 x 17.4 x 1.7 inches (440 x 442 x 44 mm)
