Dell Networking S5000 Getting Started Guide

Installing an Ethernet Module
1. Use the grab handle on the Ethernet module to slide it into the switch module slot.
2. Connect any network interface cables to the attached module.

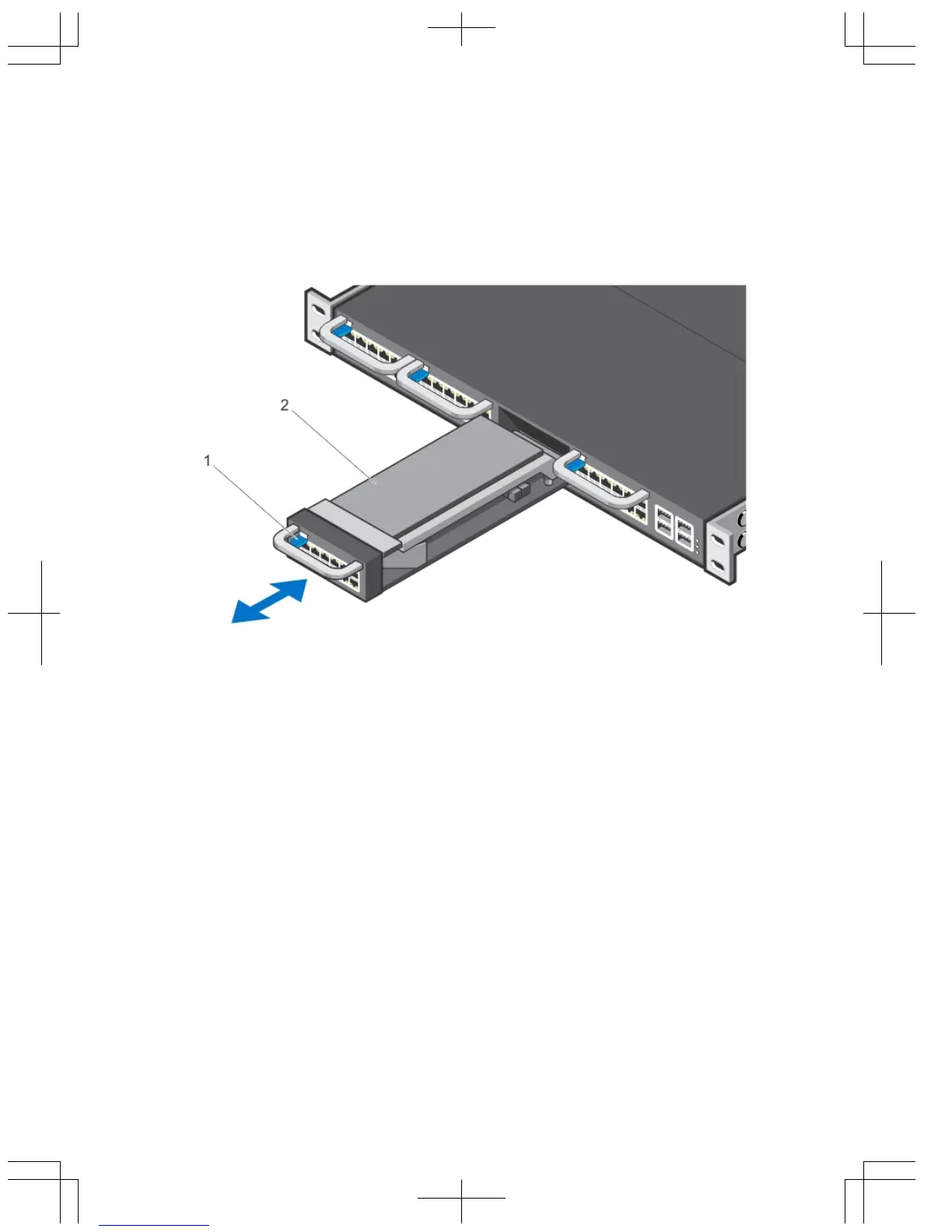

Figure 12. Installing an Ethernet Module
1. Release latch
2. Ethernet Module
Important Points to Remember for Installing a Fibre Channel
Module
• You must insert the Fibre Channel module only in slot 0.
• Installing and swapping of Fibre Channel modules must be done BEFORE power
up. If you need to install or replace a module, power down the system before you
install or replace it. If you install or replace a module when the system is
powered up, the system does not recognize the module. Online insertion of
modules can result in a catastrophic failure.
• The S5000 does not support the hot swapping of a Fibre Channel pluggable
module during switch operations. Instead, you must power down the switch
before removing and replacing a Fibre Channel module.
