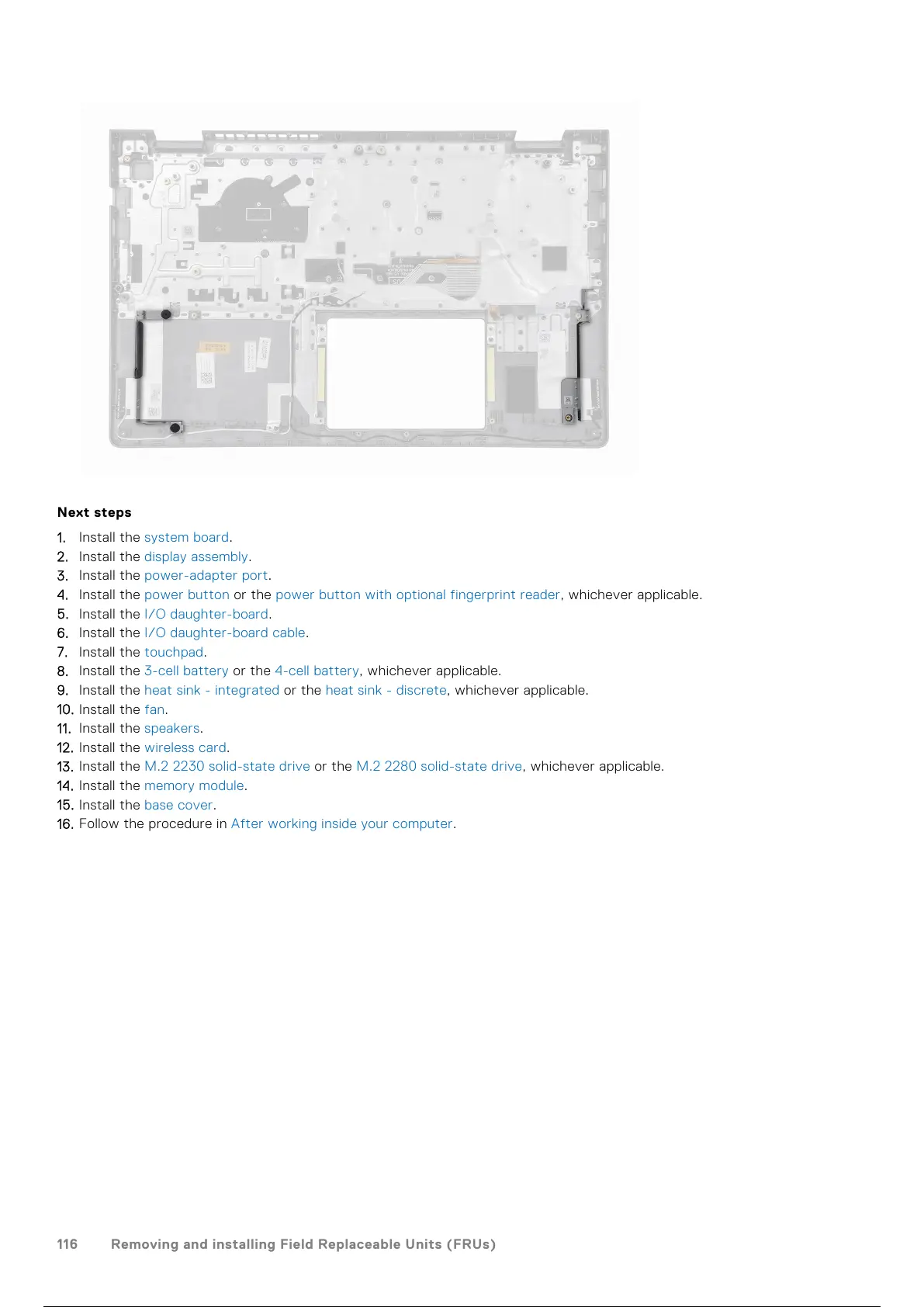

Next steps
1. Install the system board.
2. Install the display assembly.
3. Install the power-adapter port.
4. Install the power button or the power button with optional fingerprint reader, whichever applicable.
5. Install the I/O daughter-board.
6. Install the I/O daughter-board cable.
7. Install the touchpad.
8. Install the 3-cell battery or the 4-cell battery, whichever applicable.
9. Install the heat sink - integrated or the heat sink - discrete, whichever applicable.
10. Install the fan.
11. Install the speakers.
12. Install the wireless card.
13. Install the M.2 2230 solid-state drive or the M.2 2280 solid-state drive, whichever applicable.
14. Install the memory module.
15. Install the base cover.
16. Follow the procedure in After working inside your computer.
116
Removing and installing Field Replaceable Units (FRUs)
