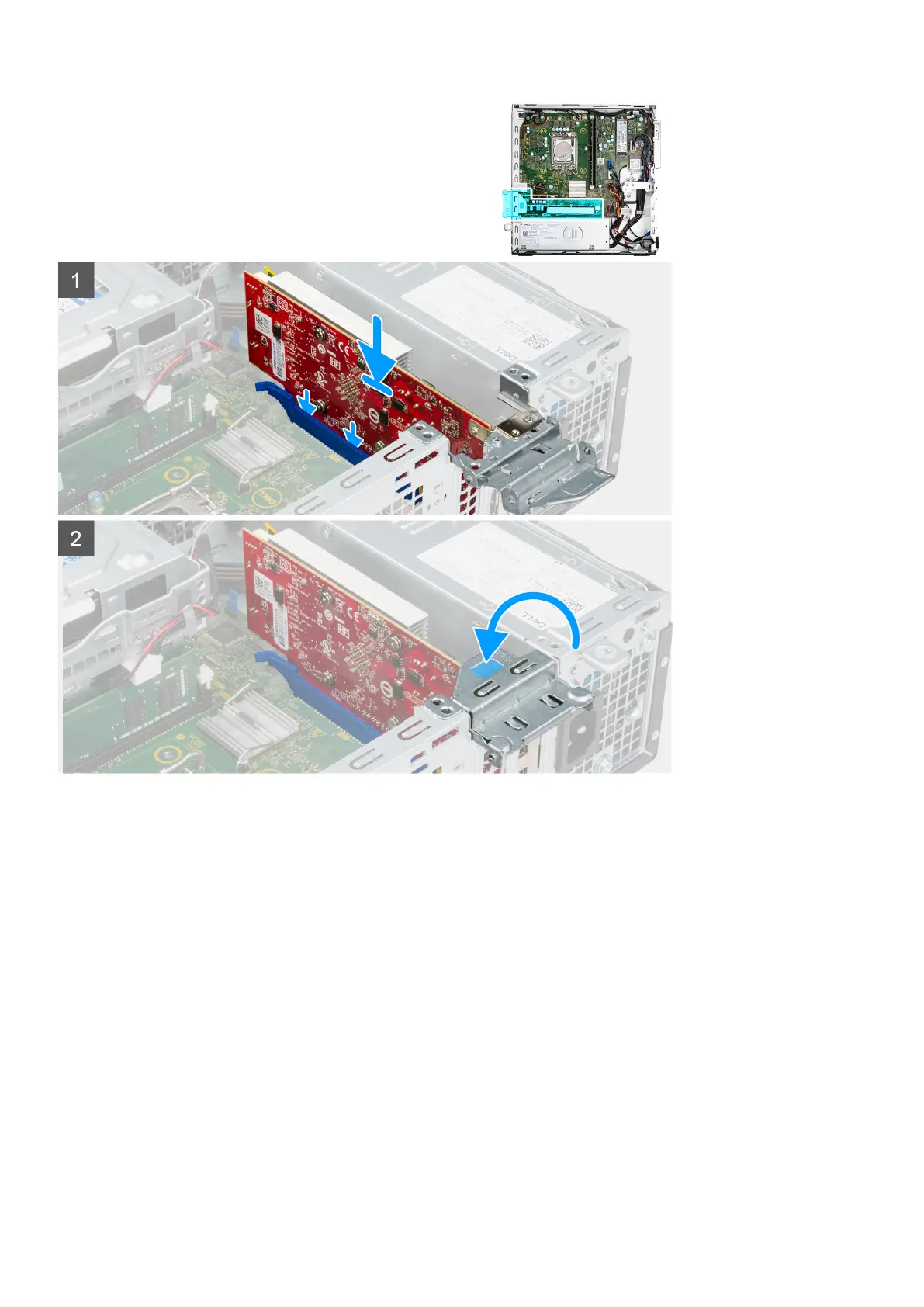

Steps
1. Align the graphics card with the PCIe x16 card slot on the system board.
2. Using the alignment post on the PCIe slot, connect the card in the connector and press down firmly. Ensure that the card is
firmly seated.
3. Close the PCIe door.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
Removing the Dell Ultra Speed Drive Gen 4 card
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
Removing and installing components
59
