Steps

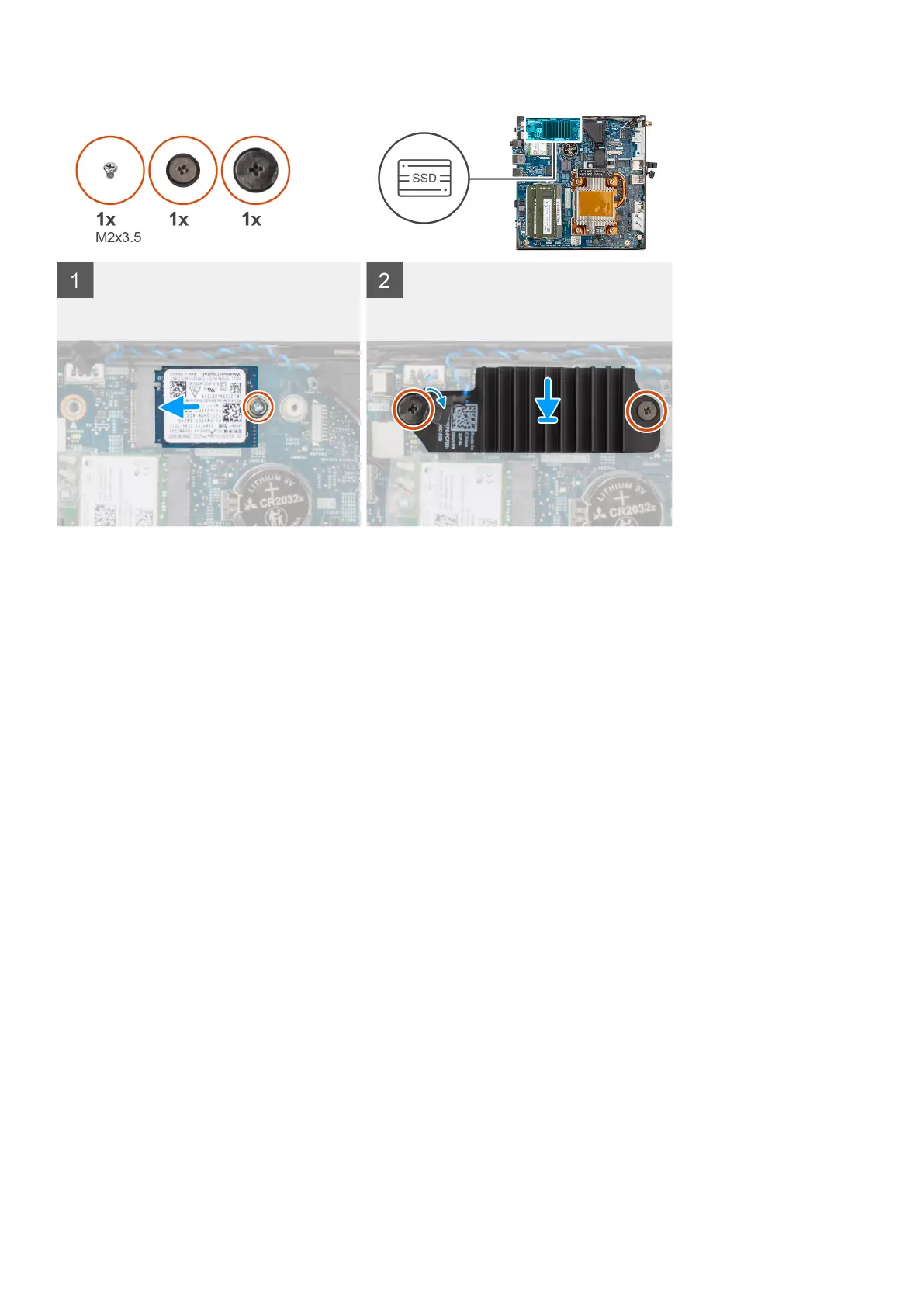

1. Align the notch on the M.2 2230 solid-state drive with the tab on the M.2 card slot.
2. Slide the M.2 2230 solid-state drive at an angle into the M.2 card slot.
3. Replace the screw (M2x3.5) to secure the M.2 2230 solid-state drive to the system board.
4. Place the solid-state drive heat sink on the M.2 2230 solid-state drive.
5. Align the screws on the solid-state drive heat sink to the screw holes on the system board.
6. Tighten the two captive screws to secure the solid-state drive heat sink to the system board.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
Memory modules
Removing the memory modules
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
About this task
The following image indicates the location of the memory modules and provides a visual representation of the removal
procedure.
Removing and installing components
17
