Next steps
1. Install the WLAN card.
2. Install the side cover.
3. Follow the procedure in after working inside your computer.
System board
Removing the system board
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
3. Remove the speaker .
4. Remove the solid-state drive assembly.
5. Remove the memory .
6. Remove the WLAN card.
7. Remove the heat sink.
About this task

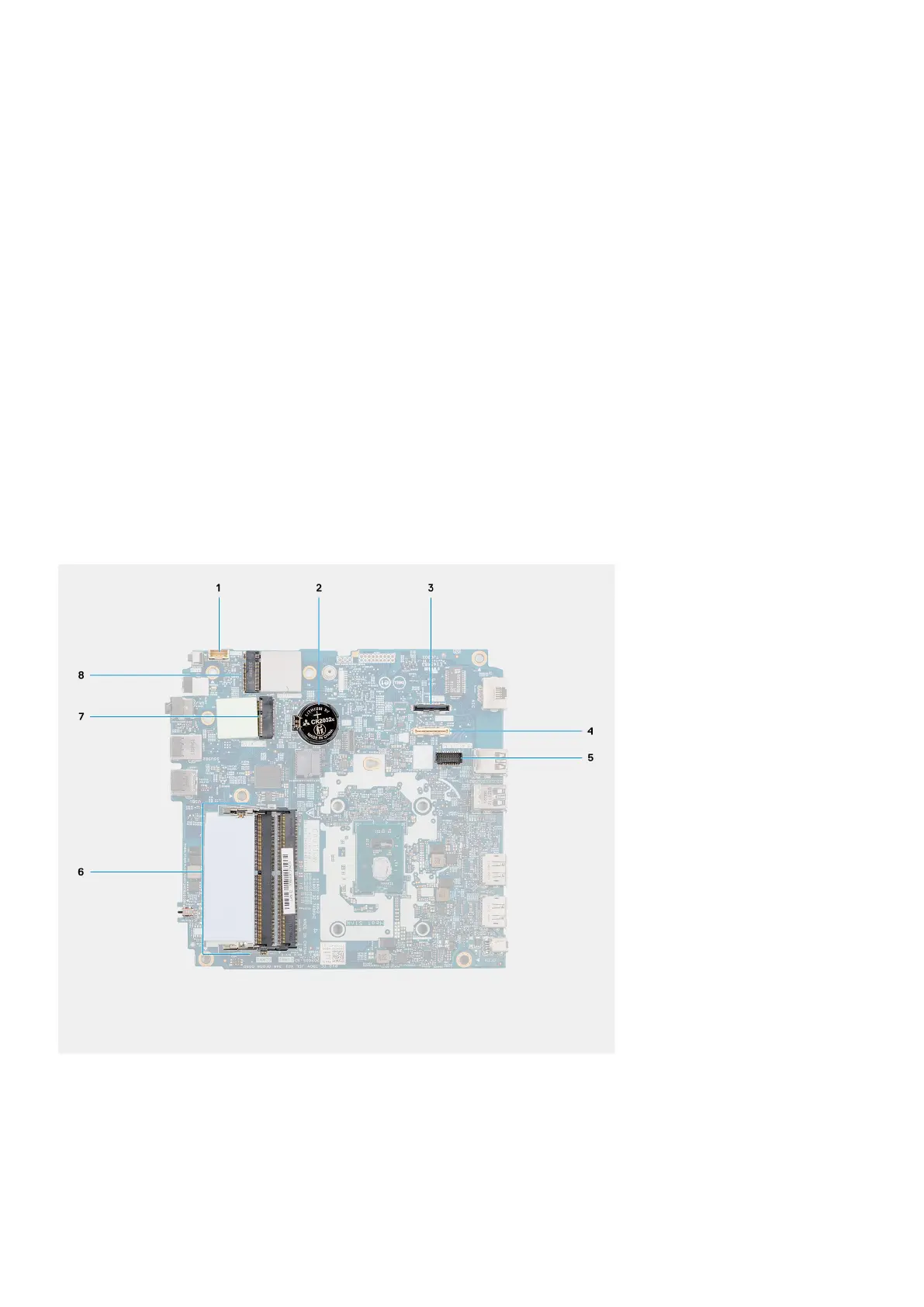

The following image indicates the connectors on your system board.
1.
Speaker cable 2. Coin-cell battery
3. Optional video connector (HDMI/VGA/DP port) 4. Optional I/O cable connector (USB 3.2 Gen 1 Type-C port
with DisplayPort Alt mode)
5. Optional PS/2 keyboard/mouse module connector 6. Memory module slots
7. WLAN card connector 8. M.2 2230 solid-state drive connector
