Steps
1. Insert and push the flat-head screwdriver into the slot on the optional module filler to release the optional module filler from
the chassis.
NOTE: Step one is only applicable for new installation or component upgrade. For replacing an existing component,
follow the procedure from step two.
2. Connect the Type-C cable and the DisplayPort cable to the connectors on the system board.
3. Align and place the Type-C module into the optional I/O module slot on the chassis.
4. Rotate and slide the Type-C module.
5. Replace the two screws (M3x3) to secure the Type-C module to the chassis.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
Removing the optional HDMI module
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
About this task

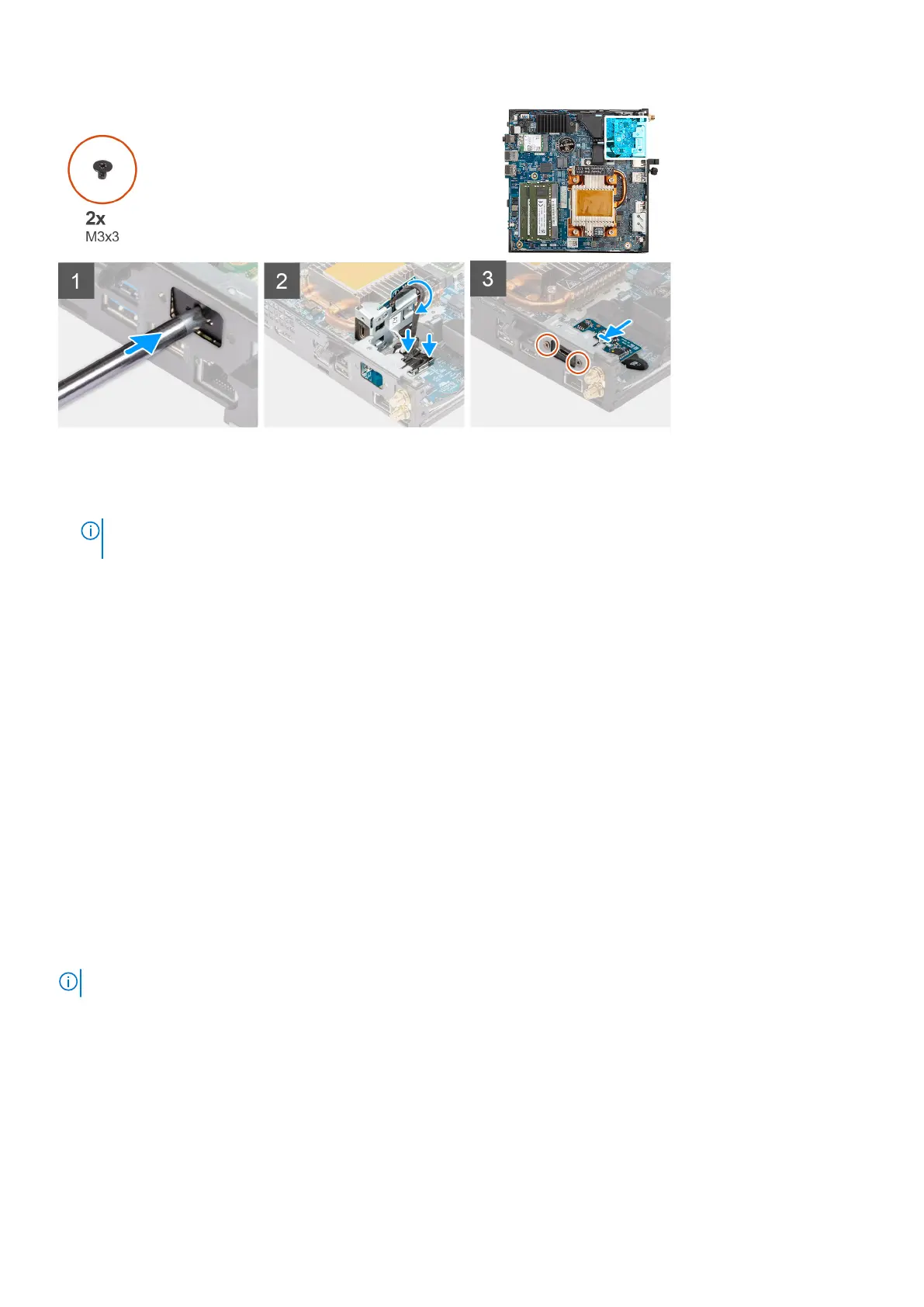

The following image indicates the location of the optional HDMI module and provides a visual representation of the removal
procedure.
NOTE: Optional VGA and DisplayPort modules have similar procedure as optional HDMI module.
To identify the ports and connectors, see the system board connectors.
