Dell OptiPlex 3046 - Mini Tower - Removing the Pcie Expansion Card; Installing the Pcie Expansion Card; Removing the Optional Ethernet Port Card

4 Close the front bezel door.
5 Install the:
a cover
b bezel
6 Follow the procedure in After Working Inside Your Computer.
Removing the PCIe expansion card
1 Follow the procedure in Before Working Inside Your Computer.
2 Remove the:
• cover
• bezel
3 Open the front bezel door.
4 To remove the PCIe expansion card:

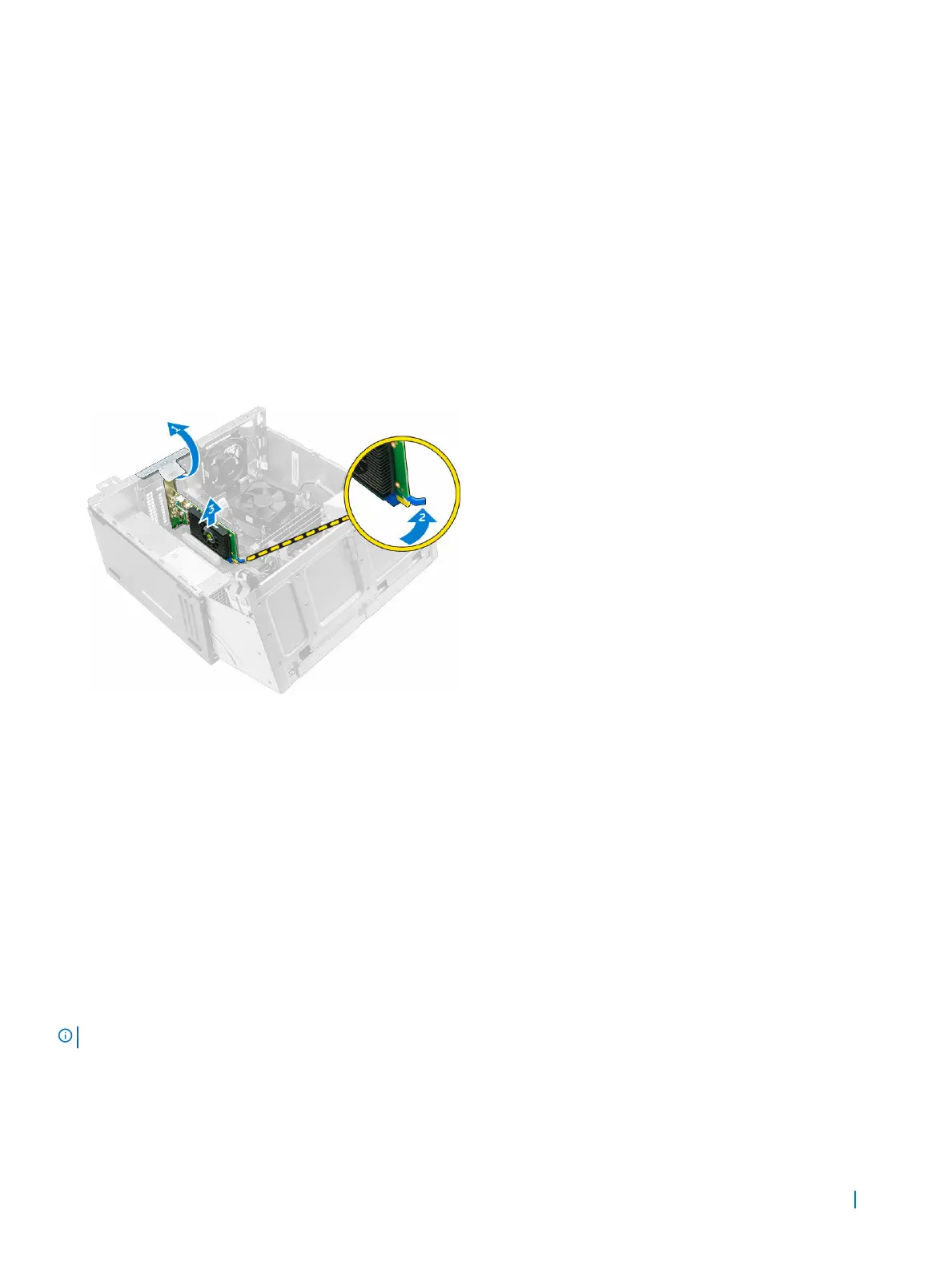

a Pull the release latch to unlock the PCIe expansion card [1].
b Push the release tab [2] and lift the PCIe expansion card out of the computer [3].
Installing the PCIe expansion card
1 Pull the release latch to open it.
2 Insert the PCIe expansion card to the connector on the system board.
3 Secure the PCIe expansion card by pushing the card retention latch until it clicks into place.
4 Close the release latch.
5 Close the front bezel door.
6 Install the:
a bezel
b cover
7 Follow the procedure in After Working Inside Your Computer.
Removing the optional Ethernet port card
NOTE
: The location of the Ethernet port card may vary from what is displayed in the illustration.
1 Follow the procedure in Before Working Inside Your Computer.
2 Remove the:
• cover
Removing and installing components 13
