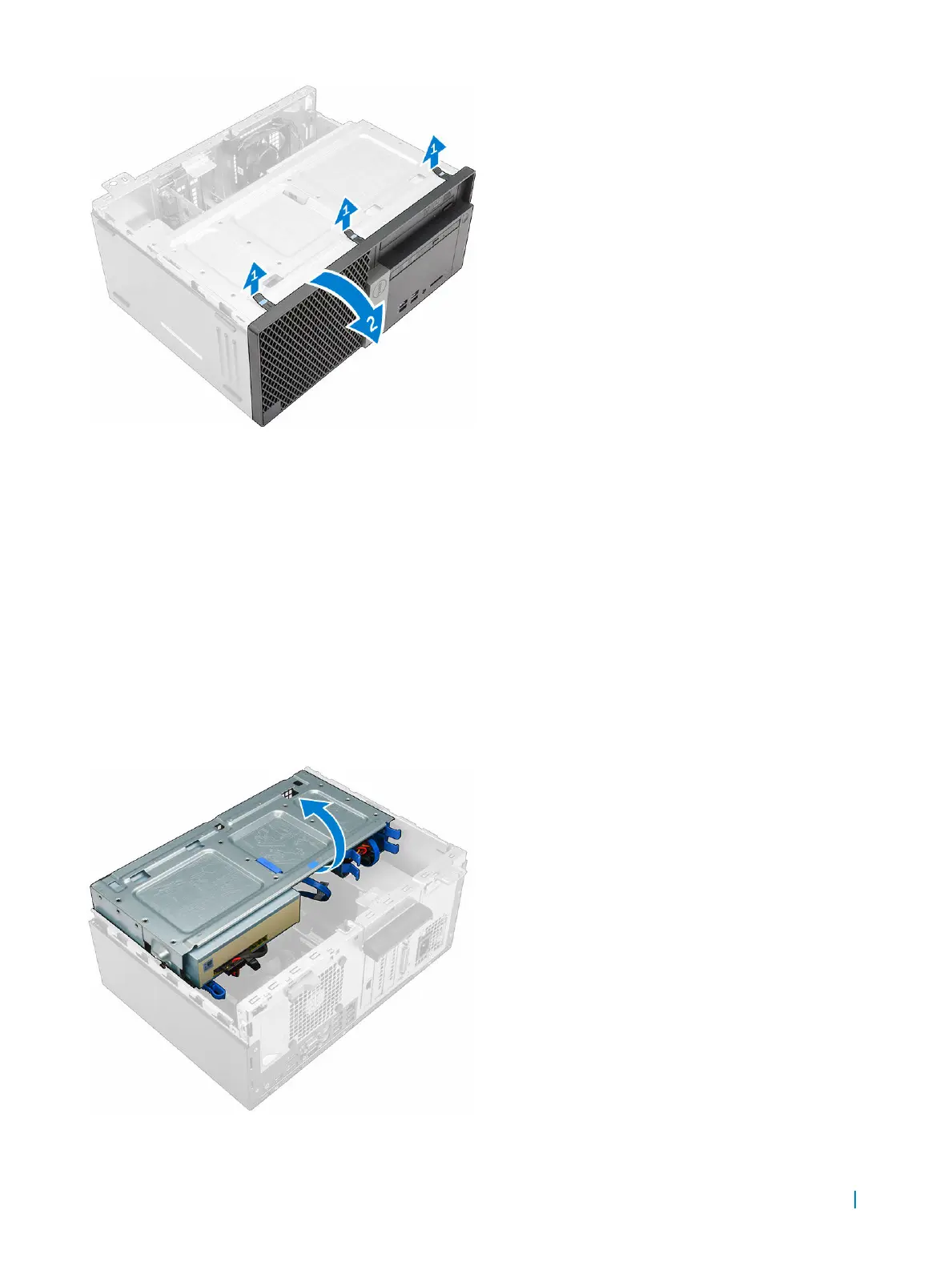

b Remove the front bezel from the computer.
Installing the bezel
1 Insert the tabs on the bezel into the slots on the computer.
2 Press the bezel until the tabs clicks into place.
3 Install the cover.
4 Follow the procedure in After Working Inside Your Computer.
Opening the front bezel door
1 Follow the procedure in Before Working Inside Your Computer.
2 Remove the:
• cover
• bezel
3 Pull the front bezel door to open it.
Removing and installing components 7
