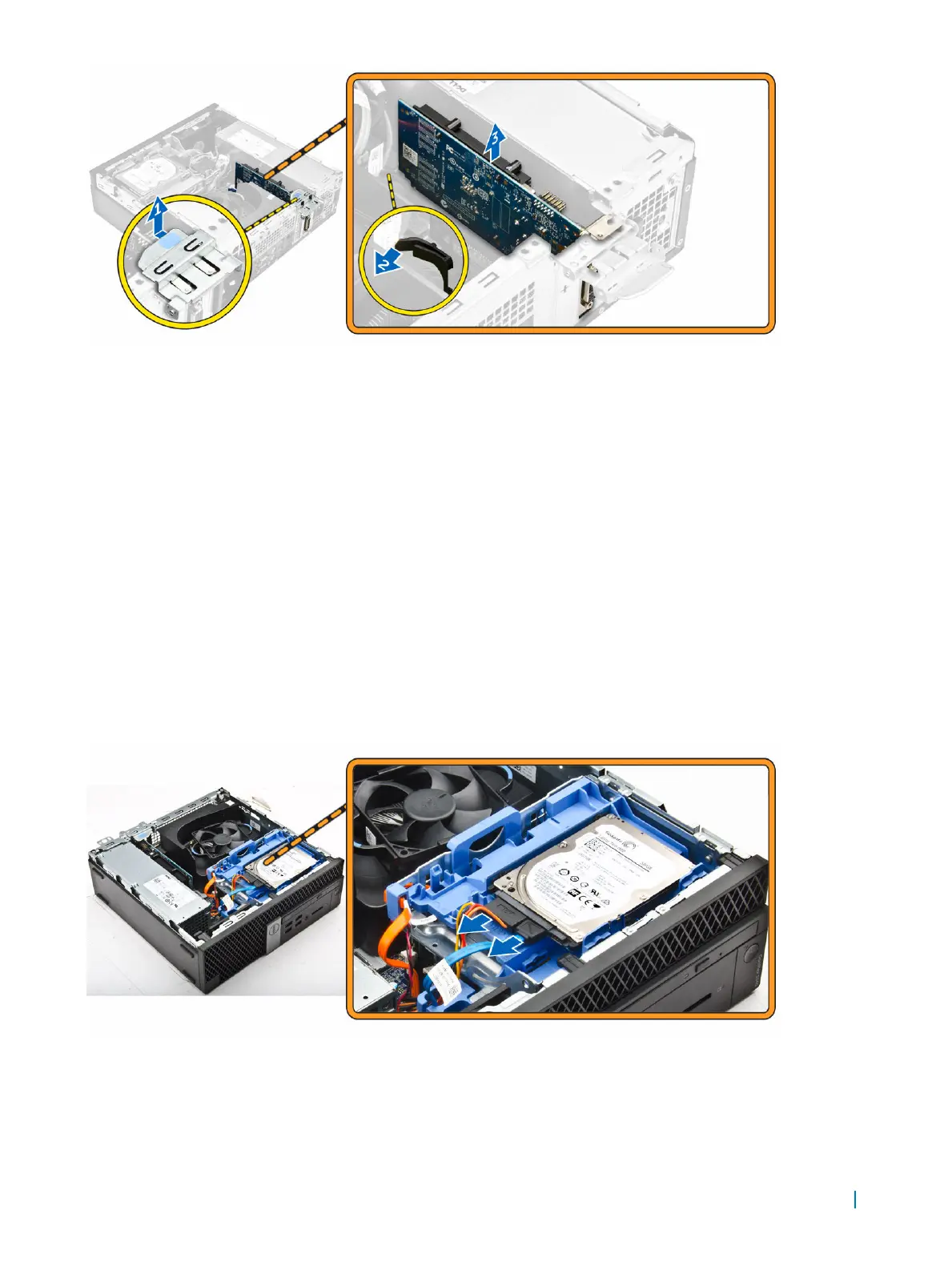

Installing the expansion card
1 Insert the expansion card into the connector on the system board.
2 Press the expansion card until it clicks into place.
3 Close the expansion card latch and press it until it clicks into place.
4 Install the:
a fan duct
b cover
5 Follow the procedure in After Working Inside Your Computer.
Removing the hard drive assembly
1 Follow the procedure in Before Working Inside Your Computer.
2 Remove the:
a cover
b fan duct
3 Disconnect the data and power cables from the connectors on the hard drive.
4 To remove the hard drive assembly:
a Pull the hard drive release handle forward to release the hard drive bracket from the computer [1].
b Lift the hard drive assembly away from the computer [2].
Removing and installing components 10
