Dell OptiPlex 3046 - Hard Drive Bracket Service; Removing Hard Drive from Bracket; Installing Hard Drive into Bracket

Removing the hard drive from the hard drive
bracket
1 Follow the procedure in Before Working Inside Your Computer.
2 Remove the:
a cover
b bezel
c hard drive assembly

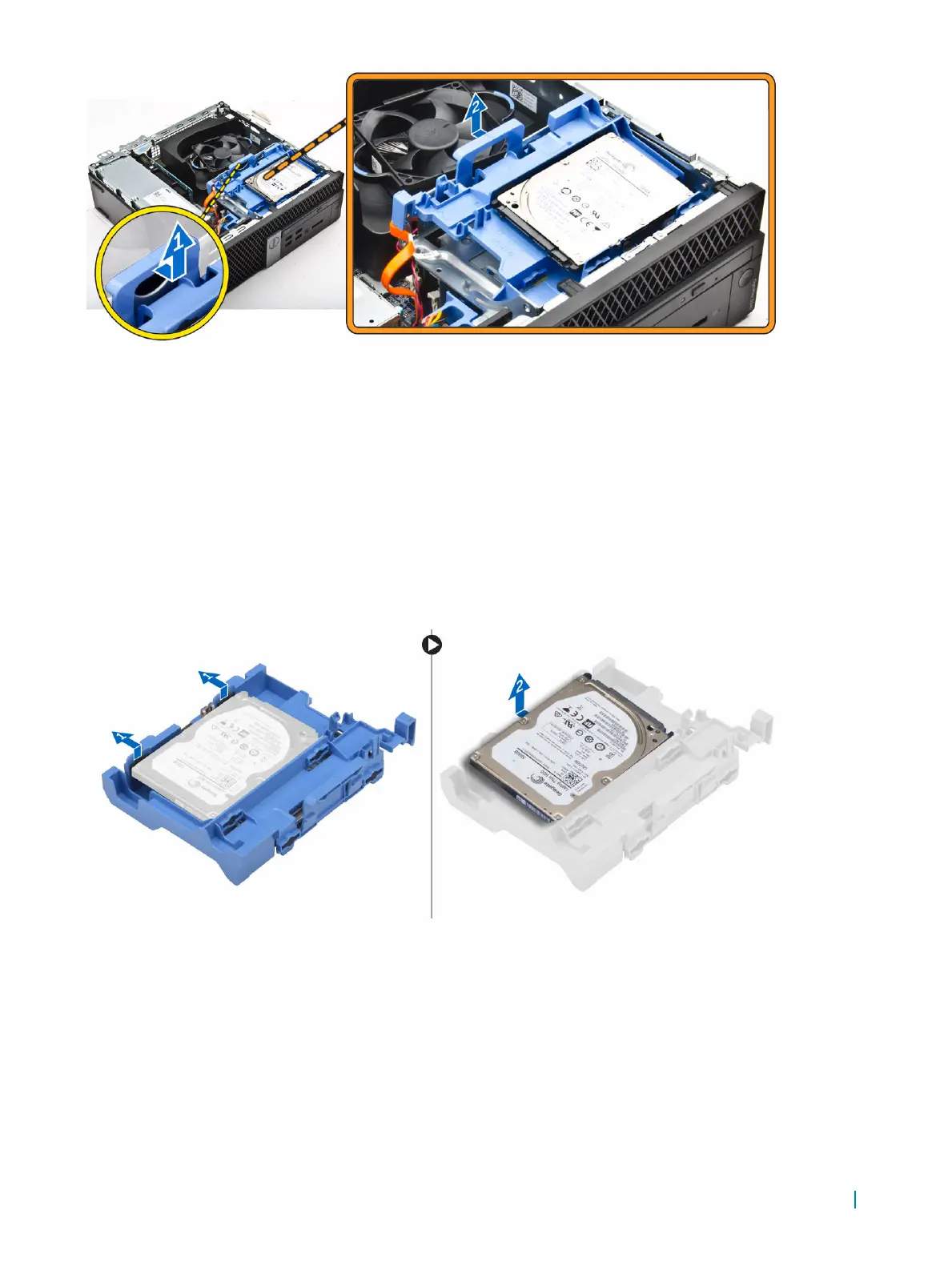

3 To remove the hard drive bracket:
a Pull the hard drive bracket to release the hard drive [1].
b Lift the hard drive out of the hard drive bracket [2].
Installing the hard drive into the hard drive
bracket
1 Insert the hard drive into the hard drive bracket until it clicks into place.
2 Install the:
a hard drive assembly
b bezel
c cover
3 Follow the procedure in After Working Inside Your Computer.
Removing and installing components 11
