Removing the front bezel
1 Follow the procedure in Before Working Inside Your Computer.
2 Remove the cover.
3 To remove the front bezel:

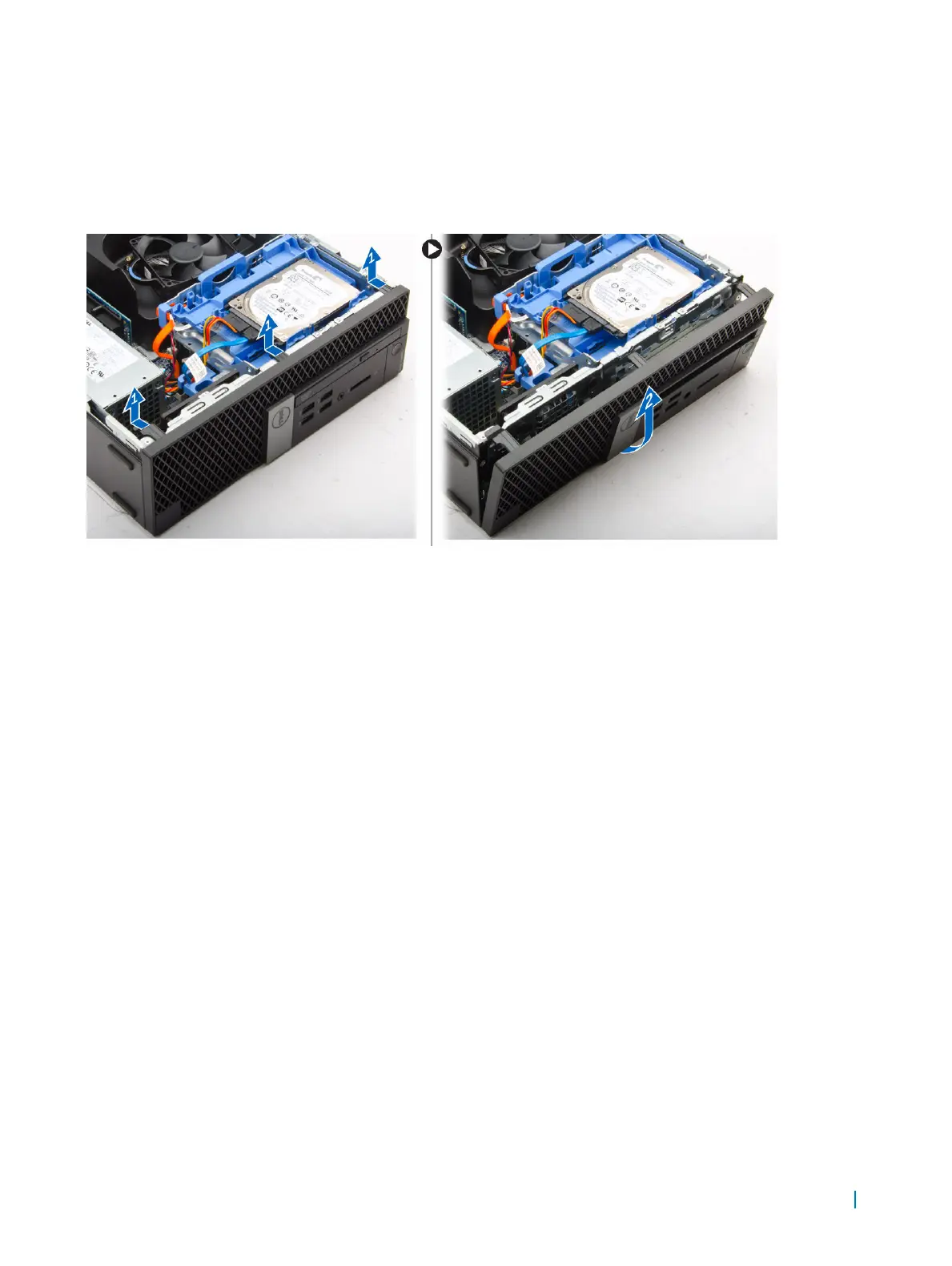

a Lift the tabs to release the front bezel from the computer [1].
b Remove the front bezel from the computer [2].
Installing the front bezel
1 Insert the tabs on the bezel into the slots on the computer.
2 Press the bezel until the tabs clicks into place.
3 Install the cover.
4 Follow the procedure in After Working Inside Your Computer
Removing the fan duct
1 Follow the procedure in Before Working Inside Your Computer.
2 Remove the cover.
3 To remove the fan duct:
a Holding the touch points, pull the fan duct bracket to release the fan duct [1].
b Lift the fan duct away from the computer [2].
Removing and installing components 7
