Dell OptiPlex 3050 Micro - Installing the M.2 Pcie SSD; System Fan; Removing System Fan

Installing the M.2 PCIe SSD
Steps

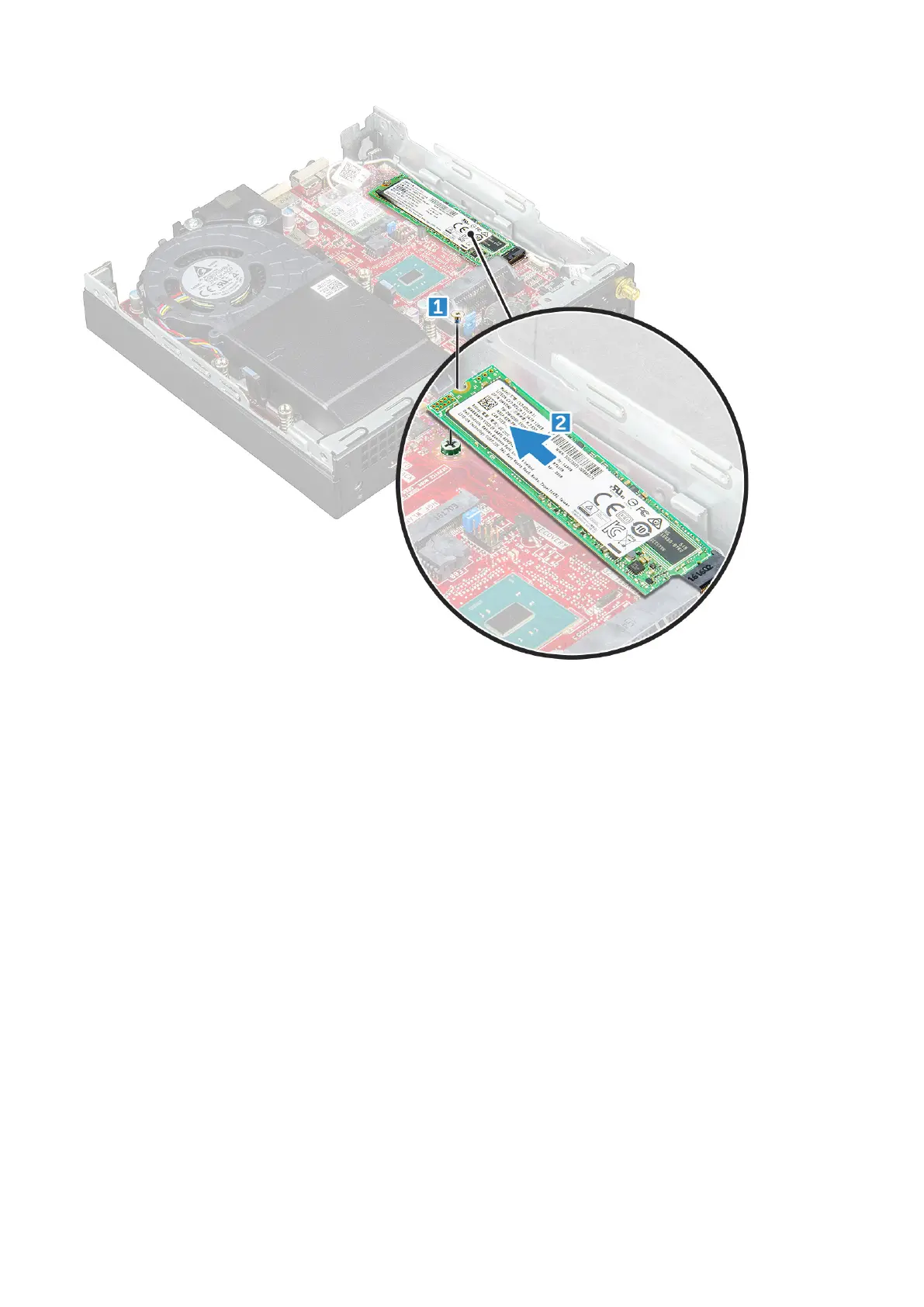

1. Insert the M.2 PCIe SSD to the connector.
2. Tighten the screw to secure the M.2 PCIe SSD to the system board.
3. Install the:
a. 2.5–inch drive assembly
b. cover
4. Follow the procedure in After working inside your computer.
System fan
Removing system fan
Steps
1. Follow the procedure in Before working inside your computer.
2. Remove the cover.
3. To remove the system fan:
a. Press the blue tabs on both sides of the system fan [1].
b. Slide and lift the system fan to release it from the computer.
c. Turn the system fan over to remove it from the computer [2].
