Removing the 2.5āinch drive from the drive bracket
1. Follow the procedure in Before Working Inside Your Computer.
2. Remove the:
a. Side cover
b. Front bezel
c. 2.5-inch hard drive assembly

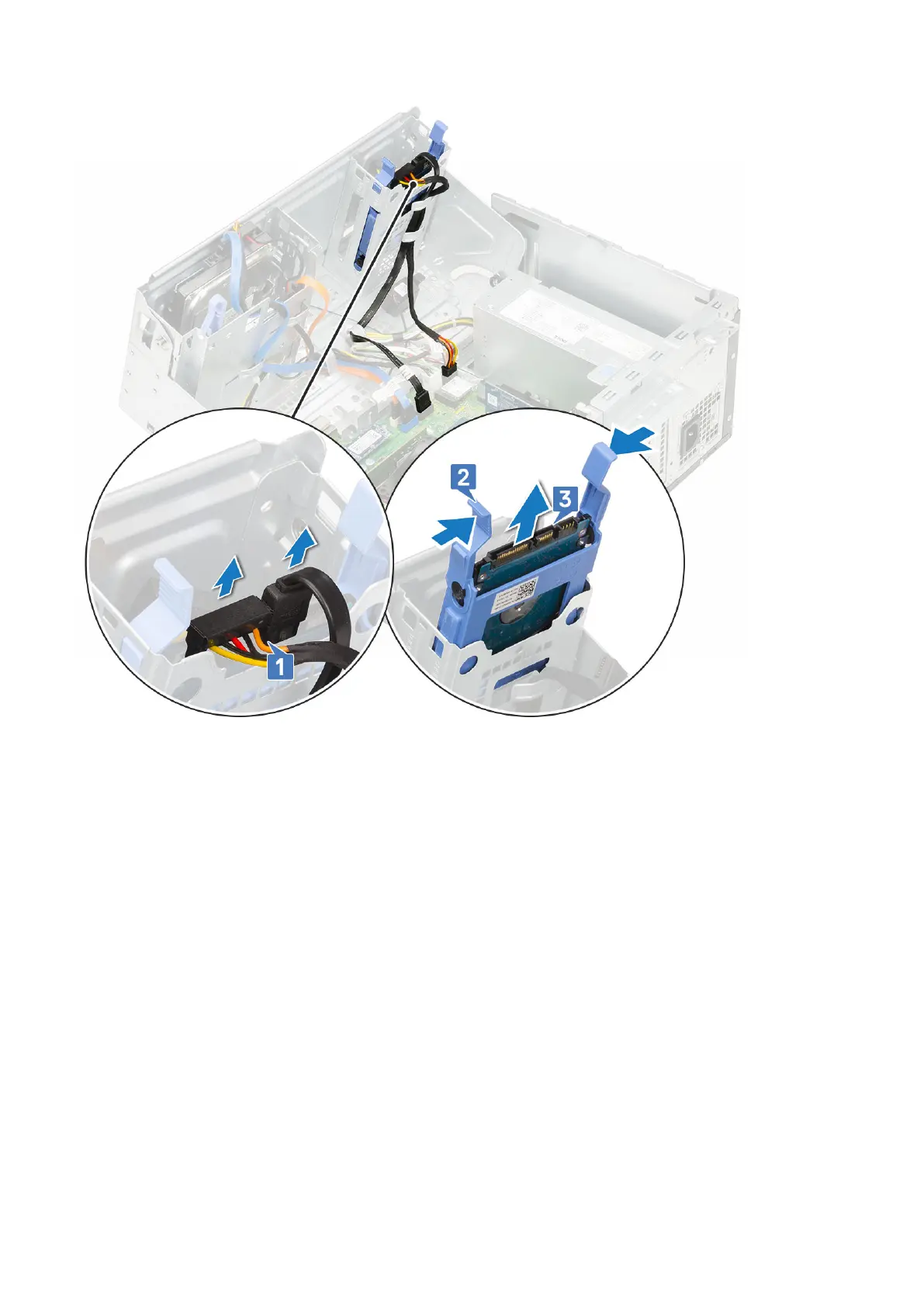

3. To remove the drive:
a. Pull one side of the drive bracket to disengage the pins on the bracket from the slots on the drive [1].
b. Lift the drive out of the drive bracket [2].
c. Remove the drive from the bracket [3].
Removing and installing components
27
