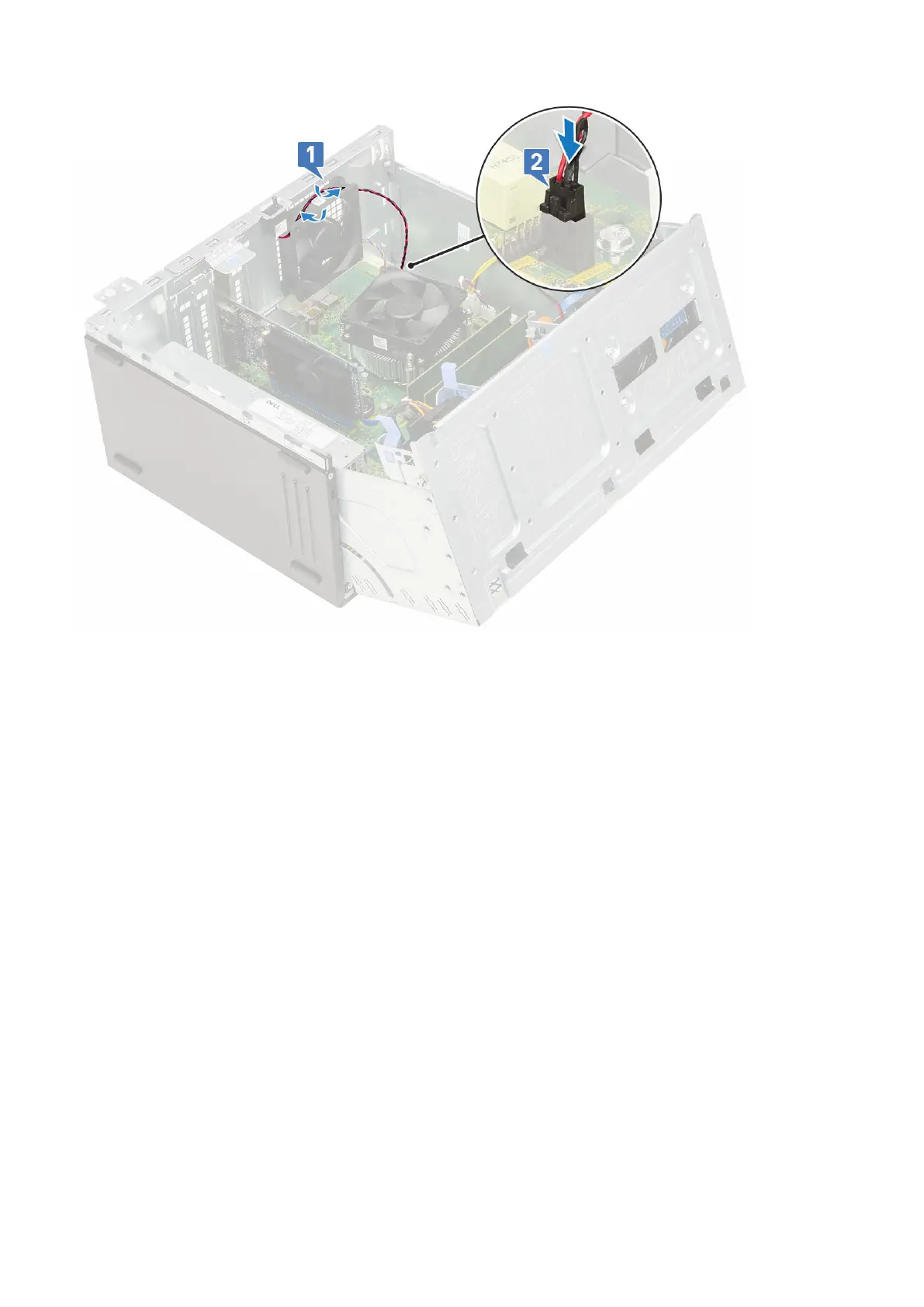

9. Close the front panel door.
10. Install the:
a. Front bezel
b. Side cover
11. Follow the procedure in After working inside your computer.
System board
Removing system board
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. Side cover
b. Front bezel
3. Open the front panel door.
4. Remove the:
a. Heatsink assembly
b. Processor
c. Expansion card
d. M.2 SSD
e. SD card reader
f. Memory module
g. Heatsink fan
5. Disconnect the following cables:
a. Intrusion switch
b. Power switch
Removing and installing components
67
