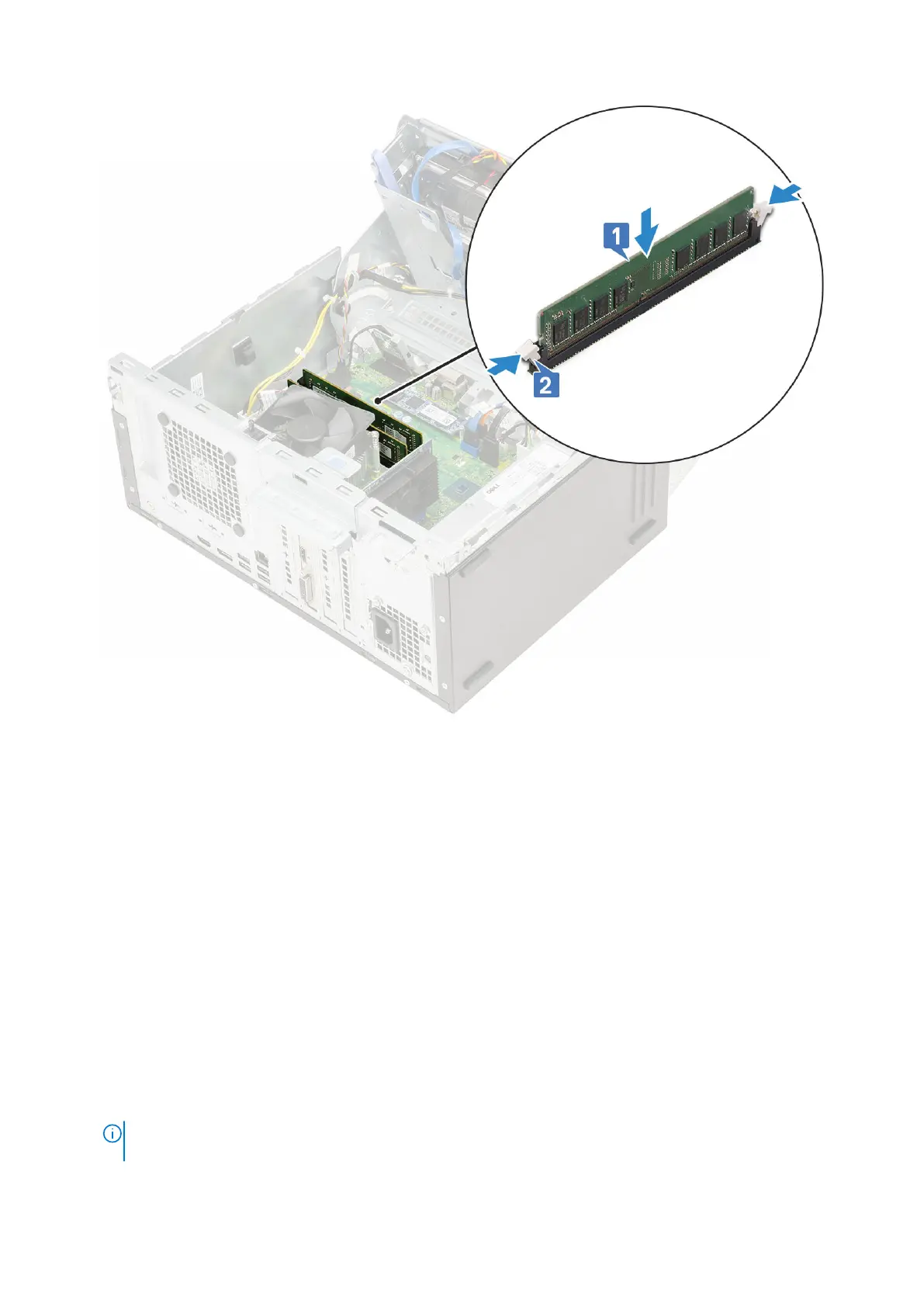

2. Close the front panel door.
3. Install the:
a. Front bezel
b. Side cover
4. Follow the procedure in After working inside your computer.
Expansion card
Removing PCIe expansion card
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. Side cover
b. Front bezel
3. Open the front panel door.
4. To remove the PCIe expansion card:
a. Pull the release latch to unlock the PCIe expansion card [1].
b. Push the card retention latch [2], and lift the PCIe expansion card out of the computer [3].
NOTE:
This step is applicable only for the connector with card retention latch, otherwise, lift the PCIe expansion
card out of the system.
Removing and installing components 39
