Dell OptiPlex 3070 Tower - Page 45

Installing power supply unit or PSU

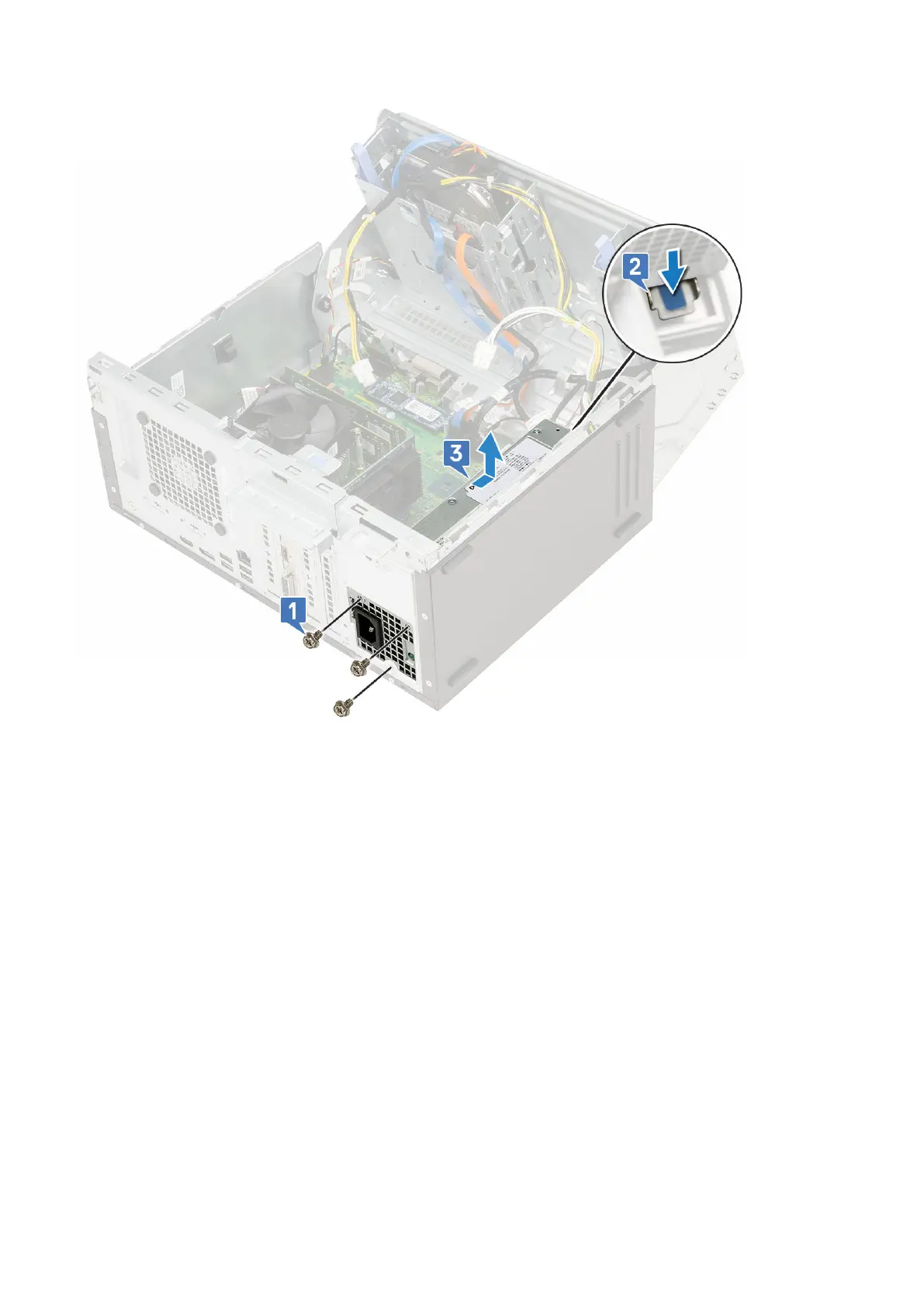

1. To install the PSU:
a. Insert the PSU into the PSU slot and slide it towards the back of the system [1], until the release tab clicks into place [2].
b. Replace the three screws to secure the PSU to the computer [3].
Removing and installing components
45
