Dell OptiPlex 3070 Tower - Page 48

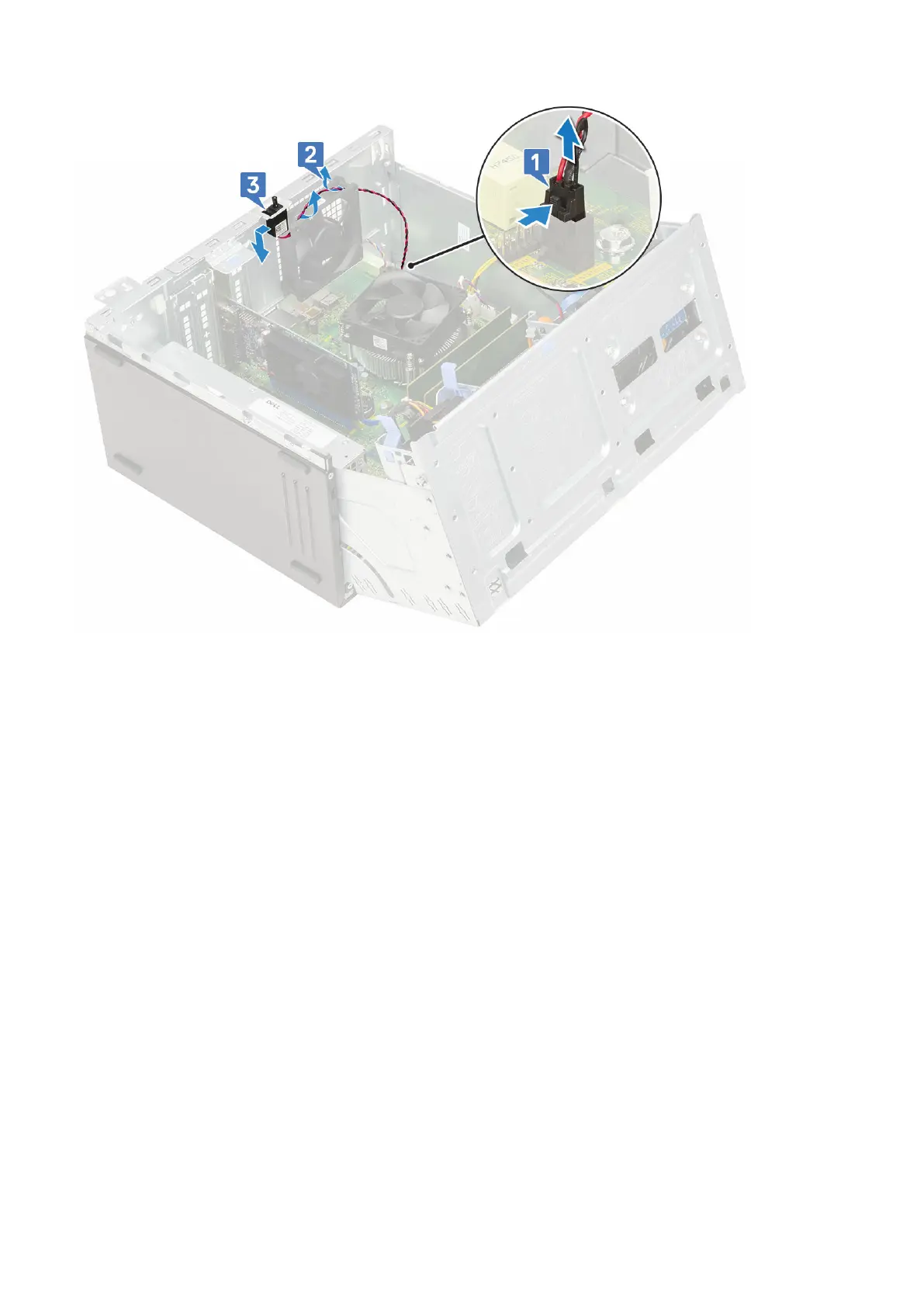

Installing intrusion switch
1. Insert the intrusion switch into the slot on the system [1].
2. Route the intrusion switch cable through the fan grommet [2].
3. Connect the intrusion switch cable to the connector on the system board [3].
48
Removing and installing components
