Dell OptiPlex 5000 Small Form Factor User Manual

Steps
1. Disconnect the intrusion-switch cable from the connector on the system board.
2. Slide the intrusion switch and lift it away from the computer.
Installing the intrusion switch
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

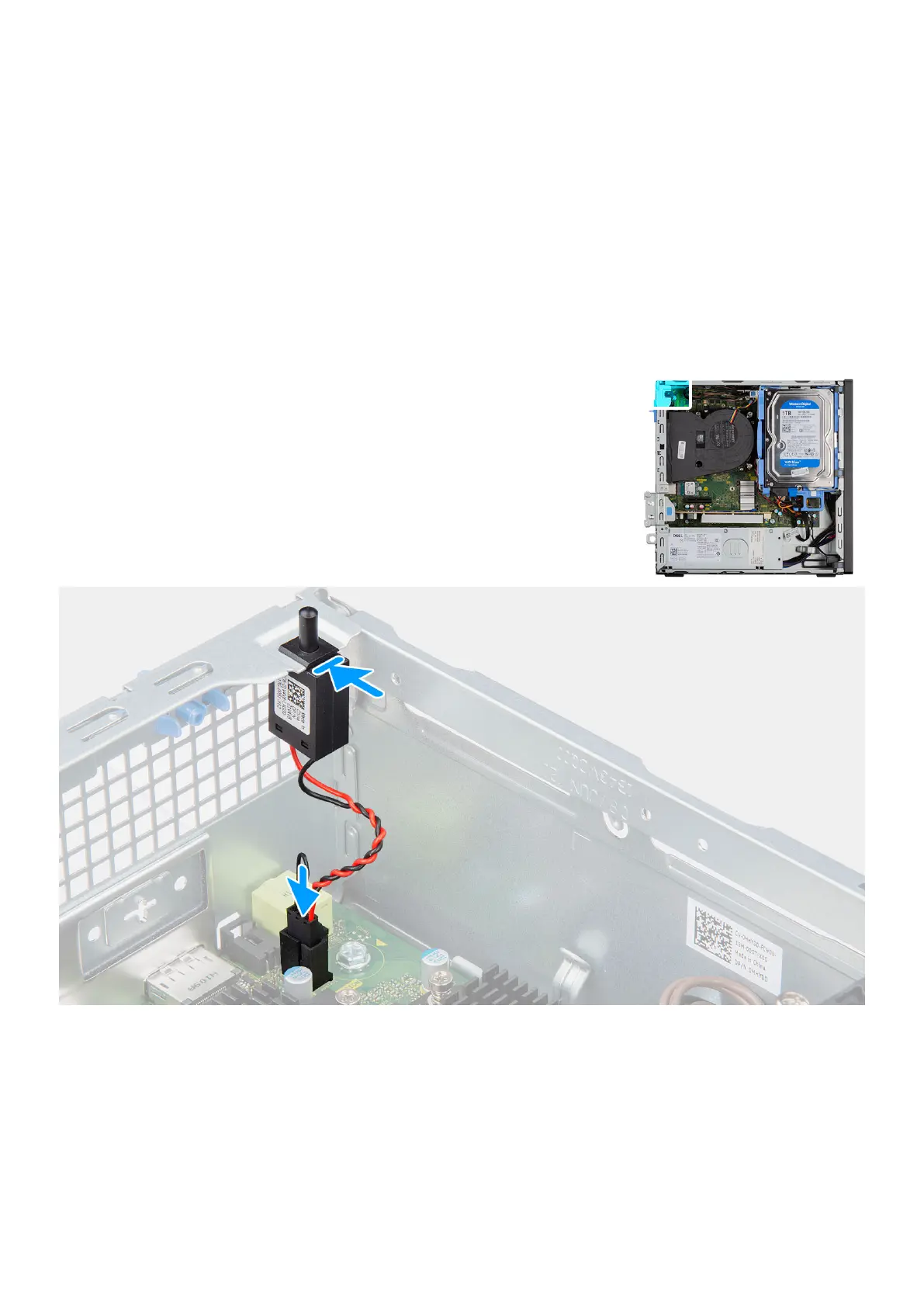

The following images indicate the location of the intrusion switch and provide a visual representation of the installation
procedure.
Steps
1. Slide the intrusion switch into the slot on the chassis.
2. Insert the connector from intrusion switch cable into the connector on the system board.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
Removing and installing components
19

Dell OptiPlex 5000 Small Form Factor Specifications

General

RAM	Up to 64GB DDR4
Storage	Up to 2TB HDD or 1TB SSD
Form Factor	Small Form Factor
Graphics	Intel UHD Graphics or optional dedicated GPU
Operating System	Windows 11 Pro
Ports (Front)	1 x USB 3.2 Gen 2 Type-C, 1 x headphone/microphone combo jack
Ports (Rear)	4x USB 3.2 Gen 1, 2x USB 2.0, 1x HDMI, 1x DisplayPort, 1x RJ-45
Expansion Slots	1 x PCIe x16
Power Supply	260W
