NOTE: Before disconnecting the cables from the system board, note the location of the connectors so that you can
reconnect the cables correctly after you replace the system board.
2. Remove the side cover.
3. Remove the front bezel.
4. Remove the fan duct.
5. Remove the memory module.
6. Remove the WLAN.
7. Remove the M.2 2230 SSD/M.2 2280 SSD.
8. Remove the coin-cell battery.
9. Remove the graphics card.
10. Remove the powered GPU.
NOTE: This step is required only if the system is configured with powered GPU.
11. Remove the speaker.
12. Remove the intrusion switch.
13. Remove the processor fan and heat-sink assembly.
14. Remove the processor.
About this task

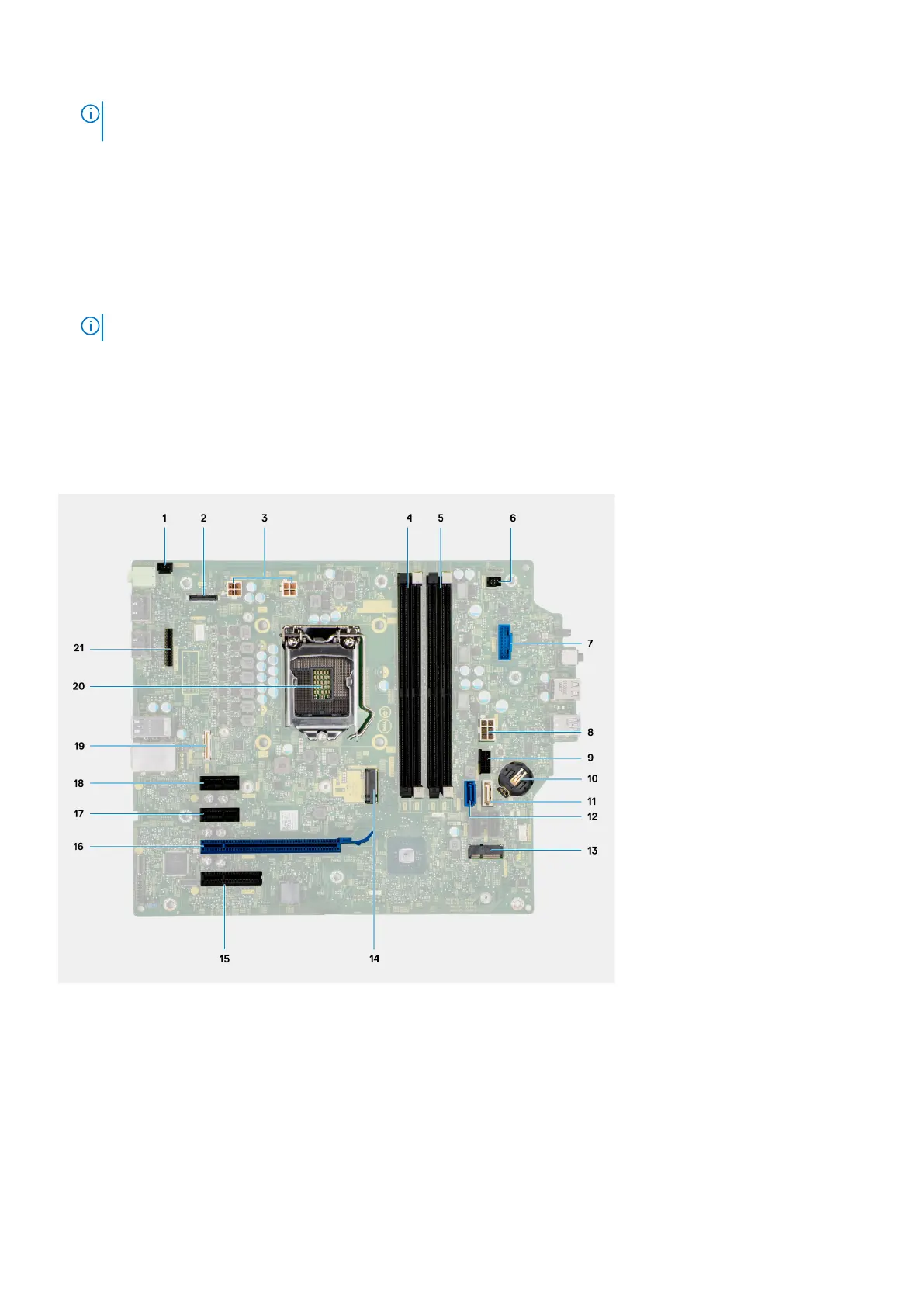

The following image indicates the connectors on your system board.
1. Intrusion switch connector
2. Video connector
3. ATX CPU power connector
4. Memory module connector
5. Memory module connector
6. Power button connector
7. SD card reader connector
8. ATX system power connector
9. M.2 PCIe SSD connector
10. Coin-cell battery
Removing and installing components
57
