Steps

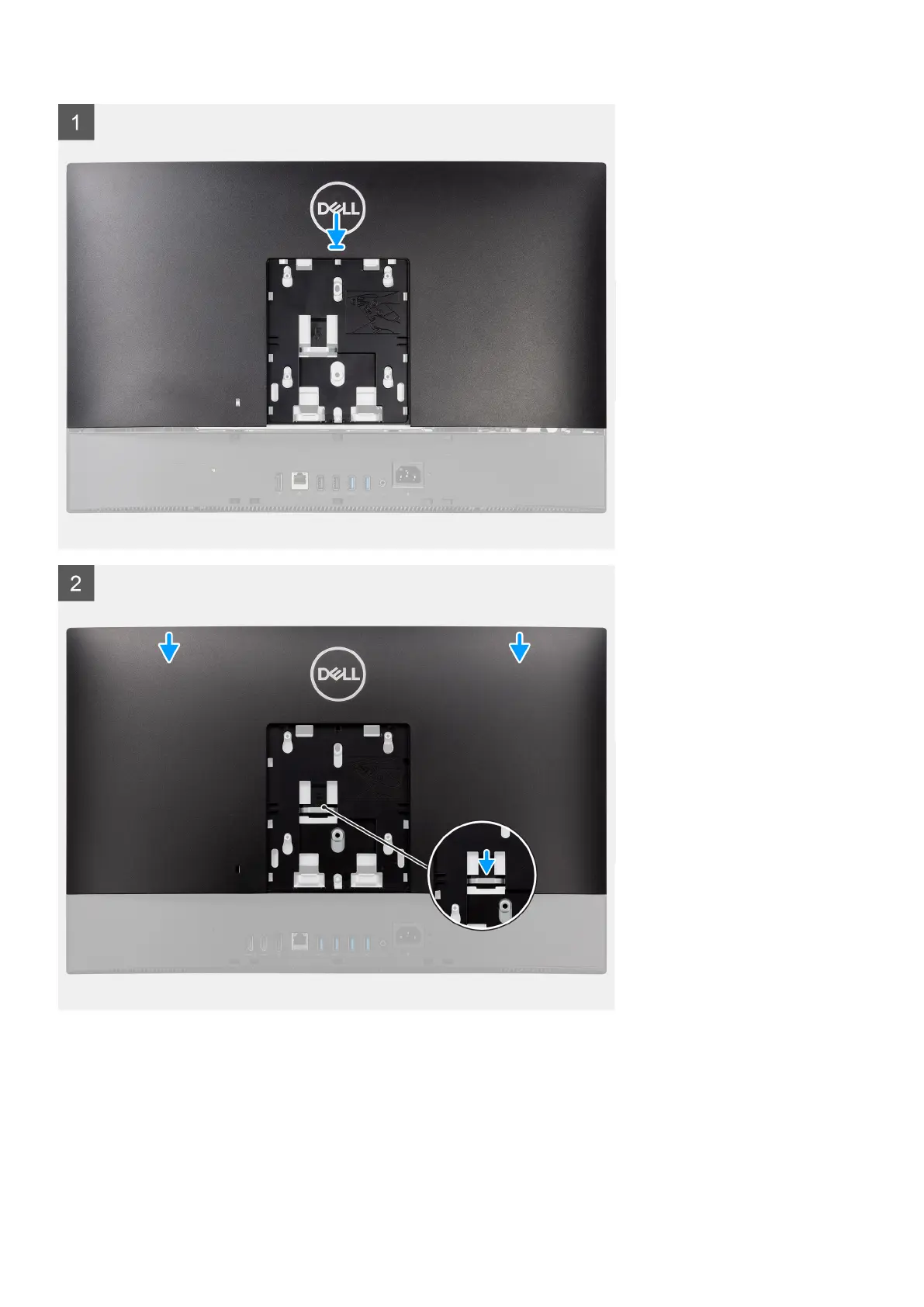

1. Place the back cover on the middle frame and system-board shield and align the tabs on the back cover with the slots on the
middle frame.
2. Slide the back cover to lock the release tab under the latch on the system-board shield.
Next steps
1. Install the cable cover (optional).
