About this task

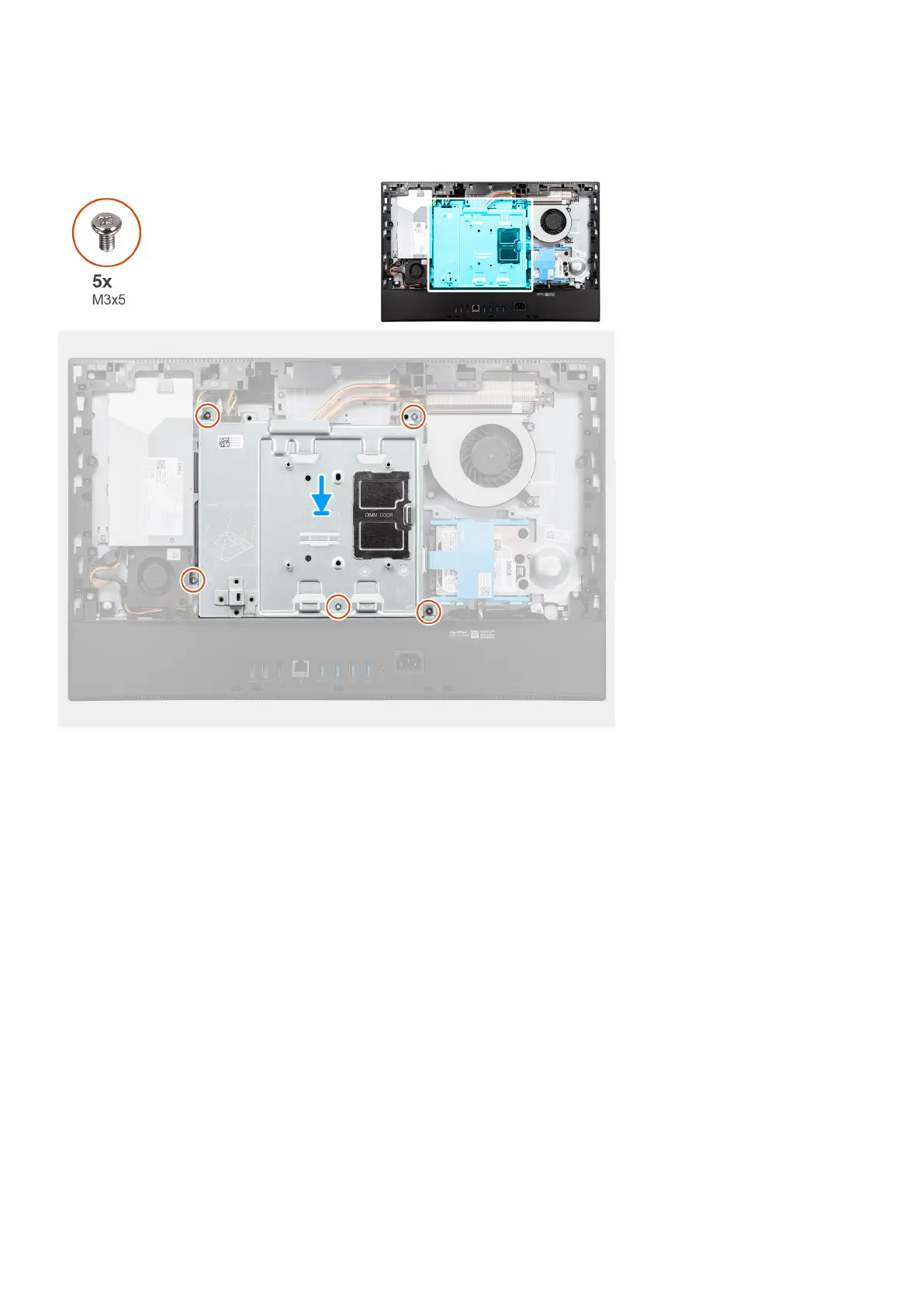

The following image indicates the location of the system-board shield and provides a visual representation of the installation
procedure.
Steps
1. Align the screw holes on the system-board shield with the screw holes on the display-assembly base.
2. Replace the five screws (M3x5) to secure the system-board shield to the display-assembly base.
Next steps
1. Install the back cover.
2. Install the cable cover (optional).
3. Install the stand.
4. Follow the procedure in After working inside your computer.
Solid-state drive
Removing the M.2 2230 solid-state drive-slot 1
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the stand.
3. Remove the cable cover (optional).
4. Remove the back cover.
