5. Remove the system-board shield.
About this task

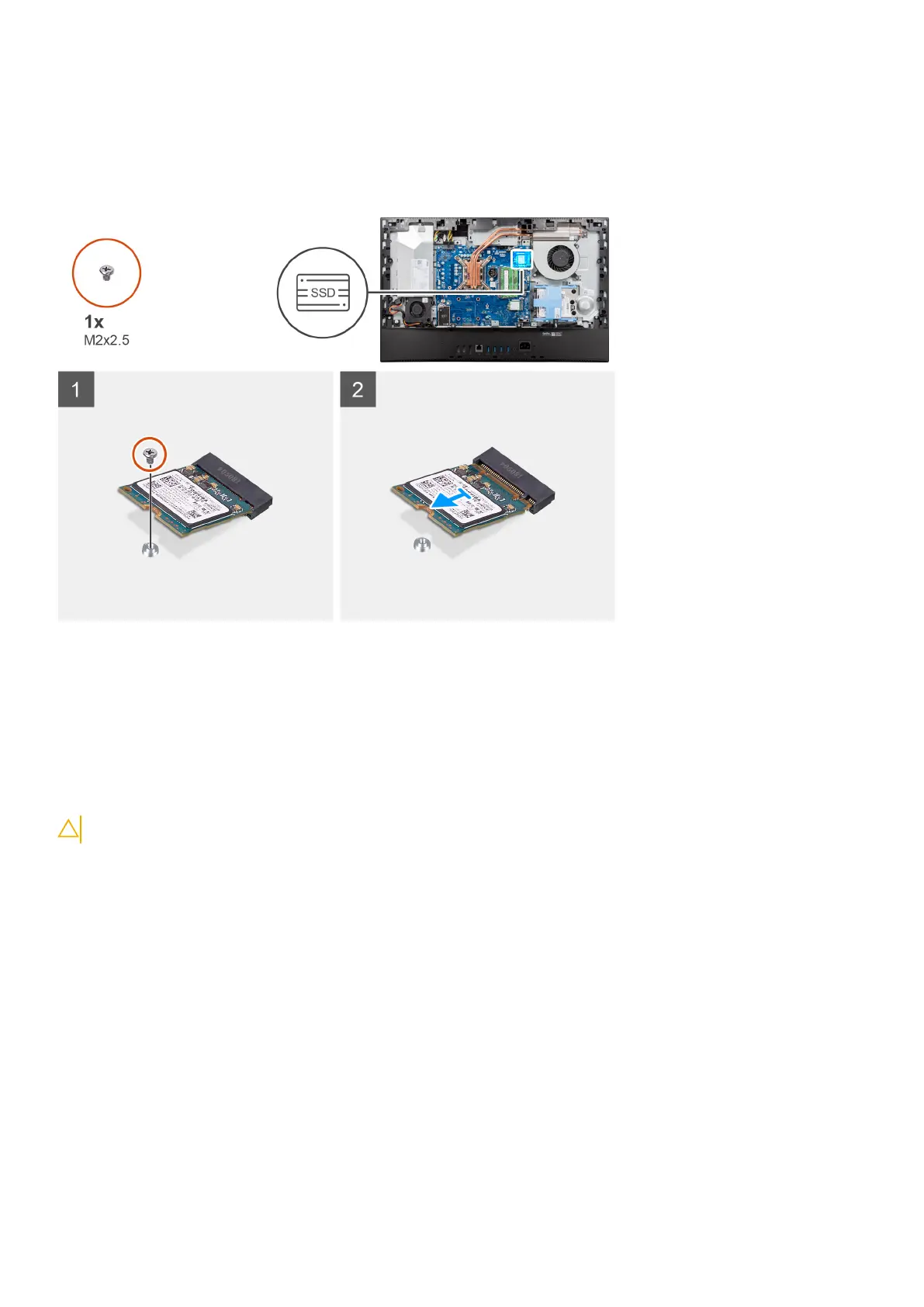

The following image indicates the location of the slot-1 M.2 2230 solid-state drive and provides a visual representation of the
removal procedure.
Steps
1. Remove the screw (M2x2.5) that secures the solid-state drive to the system board.
2. Slide and remove the solid-state drive from the M.2 card slot on the system board.
Installing the M.2 2230 solid-state drive-slot 1
Prerequisites
CAUTION: Solid-state drives are fragile. Exercise care when handling the solid-state drive.
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the slot-1 M.2 2230 solid-state drive and provides a visual representation of the
installation procedure.
30
Removing and installing components
