Steps
1. Align the screw holes on the system fan with the screw holes on the display-assembly base.
2. Replace the three screws (M3x5) to secure the system fan to the display-assembly base.
3. Connect the system-fan cable to the connector on the system board.
Next steps
1. Install the system-board shield.
2. Install the back cover.
3. Install the cable cover (optional).
4. Install the stand.
5. Follow the procedure in After working inside your computer.
Removing the system fan—65 W
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the stand.
3. Remove the cable cover (optional).
4. Remove the back cover.
5. Remove the system-board shield.
About this task

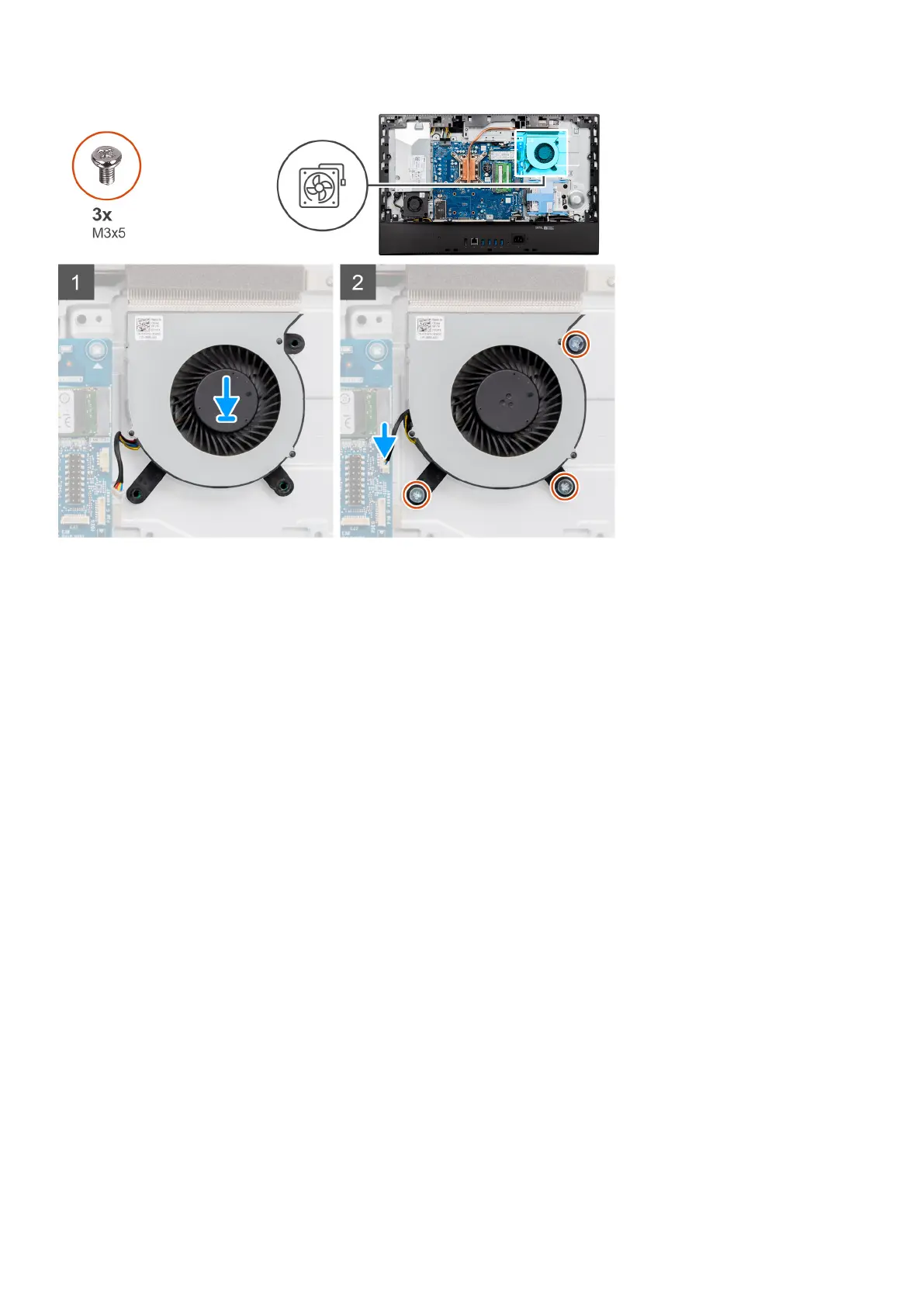

The following image indicates the location of the system fan and provides a visual representation of the removal procedure.
