Steps

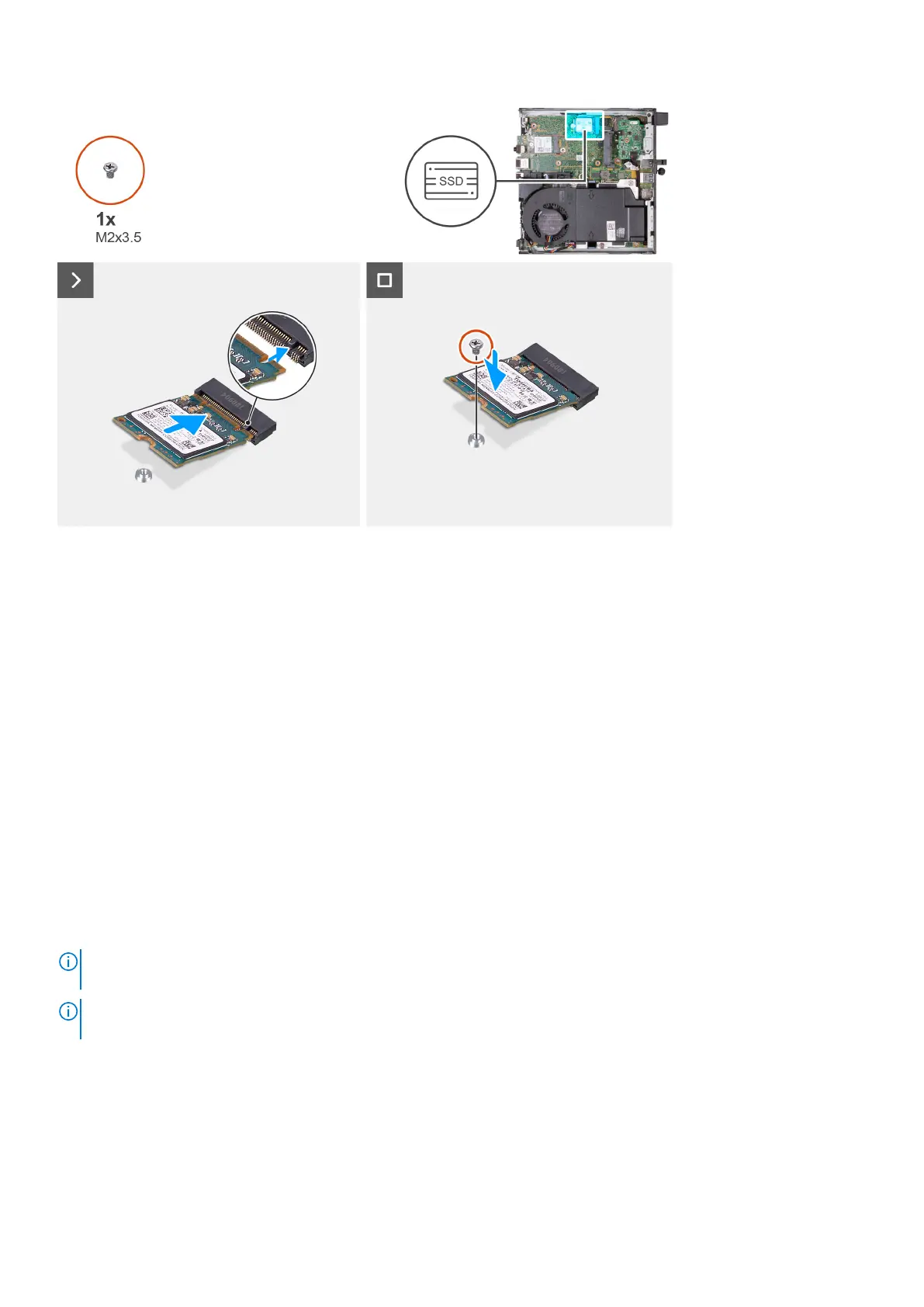

1. Align the notch on the M.2 2230 solid-state drive with the tab on the solid-state drive slot (M.2 PCIe SSD 1).
2. Slide the M.2 2230 solid-state drive into the solid-state drive slot (M.2 PCIe SSD 1) on the system board.
3. Replace the screw (M2x3.5) that secures the M.2 2230 solid-state drive to the system board
Next steps
1. Install the hard drive, if applicable.
2. Install the side cover.
3. Follow the procedure in After working inside your computer.
Removing the M.2 2280 solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover.
3. Remove the hard drive, if applicable.
About this task
NOTE:
Depending on the configuration ordered, your computer may have an M.2 2230 or an M.2 2280 solid-state drive
installed in the solid-state drive slot (M.2 PCIe SSD 1) on the system board.
NOTE: This procedure is applicable for computers where an M.2 2280 solid-state drive is installed in the solid-state drive
slot (M.2 PCIe SSD 1) on the system board.
The following image(s) indicate the location of the M.2 2280 solid-state drive and provides a visual representation of the
removal procedure.
