Connect devices such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.

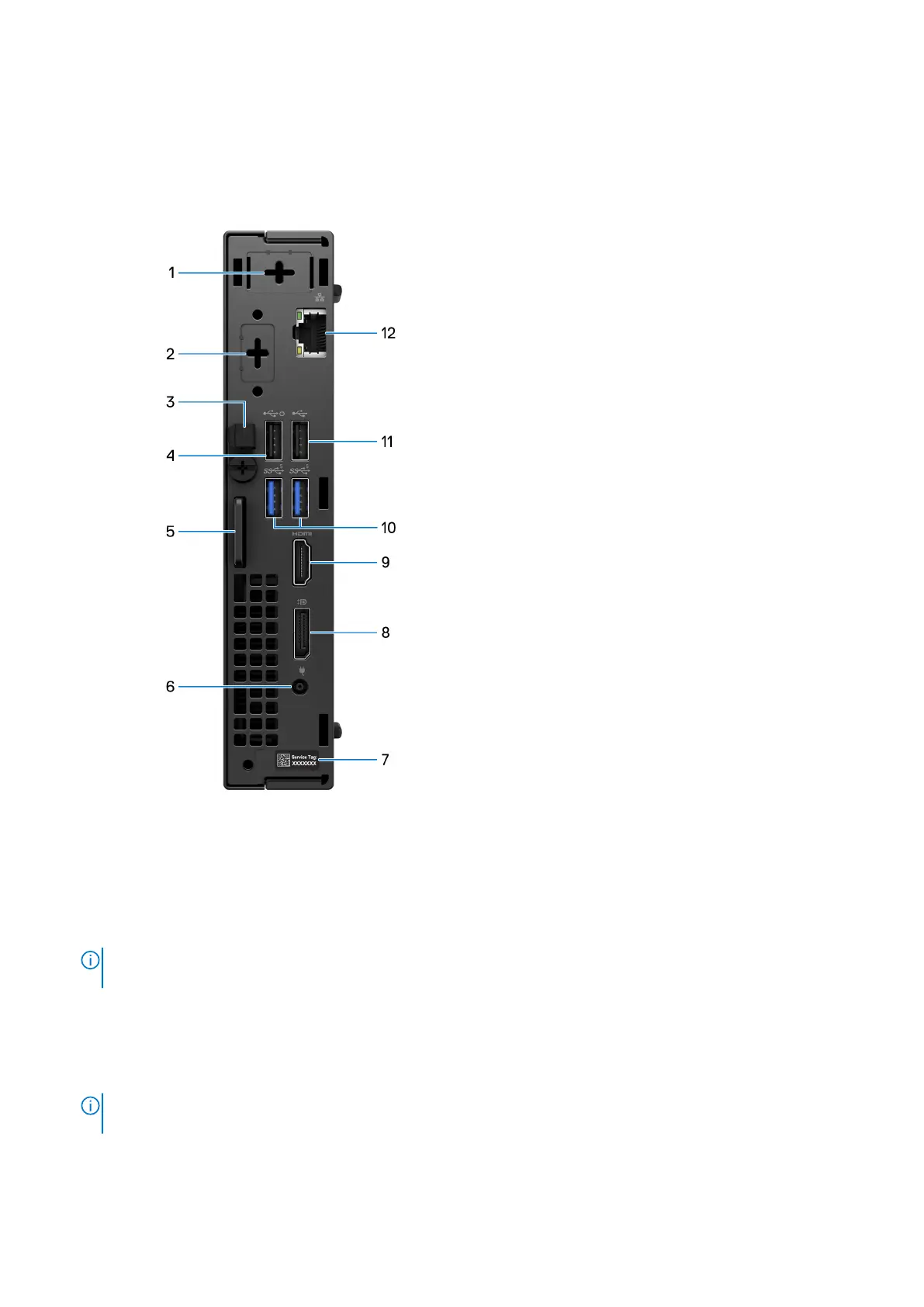

Back
1. One optional external antenna port
Supports an optional external antenna module.
2. One optional video module port
Supports an optional module for HDMI 2.1/Displayport 1.4a (HBR3)/VGA/PS2/serial/USB Type-C with DisplayPort Alt mode
+ power delivery in.
NOTE:
You may connect a 90 W Dell USB-C hub monitor to the optional Type-C port as a consolidated power, display
and USB I/O solution for your computer.
3. DC-in cable clip
For power-adapter cable routing.
4. USB 2.0 port with Smart Power on
Connect devices such as external storage devices and printers. Provides data transfer speeds up to 480 Mbps.
NOTE:
When USB wake is enabled in the BIOS the computer will power on or wake from hibernation when a USB mouse
or keyboard that is connected to this port is used.
5. Kensington security-cable slot and padlock ring
Views of OptiPlex Micro 7010
7
