Screw list

NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and

then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is

restored when the component is replaced.

NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surfaces when

replacing a component.

NOTE: Screw color may vary with the configuration ordered.

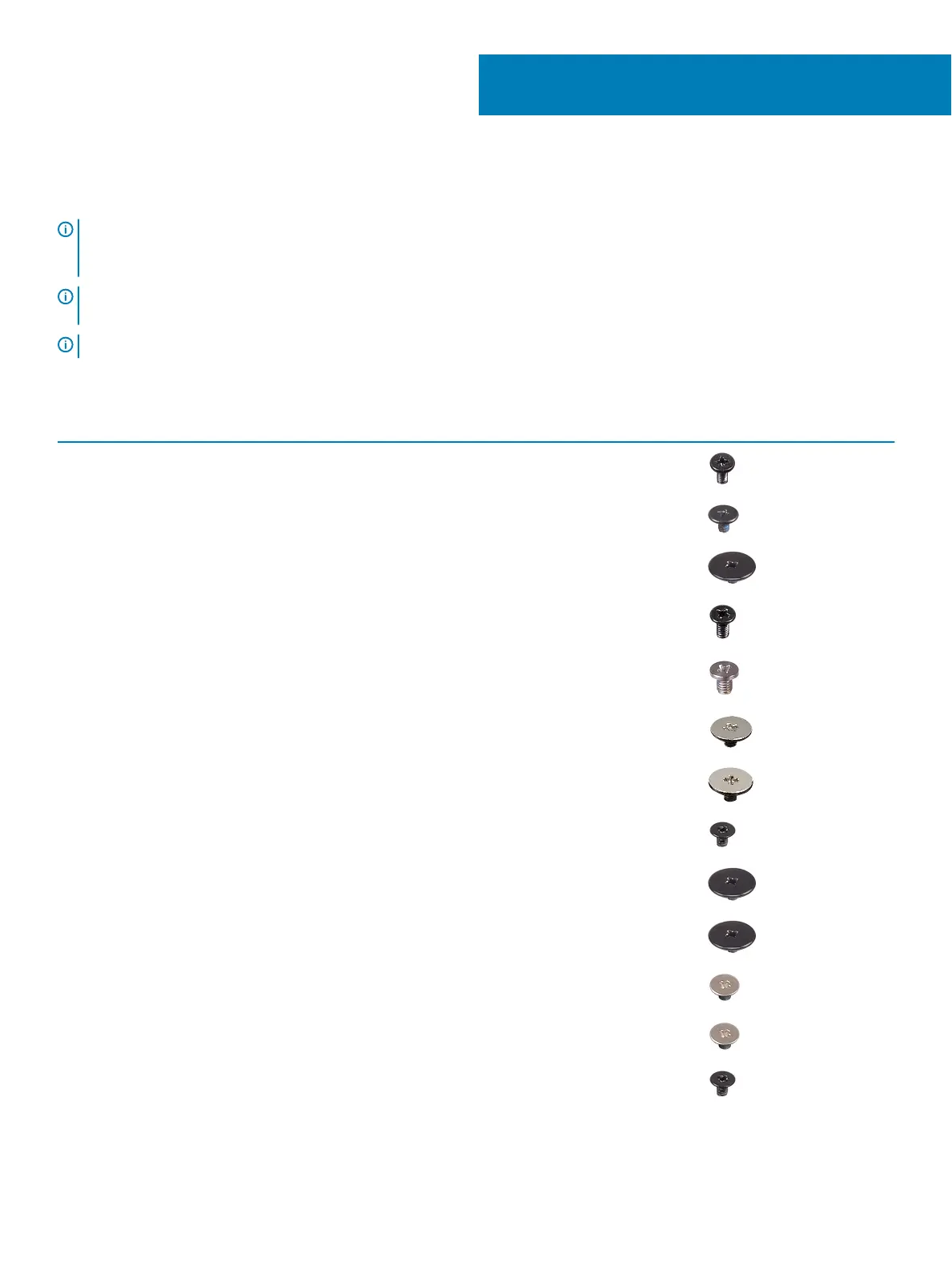

Table 1. Screw list

Component Secured to Screw type Quantity Screw image

Base cover Palm-rest assembly M2x4 6

Battery Palm-rest assembly M1.6x4 1

Battery Palm-rest assembly M2x2 Big Head 4

Fan Palm-rest assembly M2x2 2

Display hinges Palm-rest assembly M2x3.5 5

Keyboard Palm-rest assembly M1.2x1.3 4

Keyboard bracket Palm-rest assembly M1.2x1.8 29

Power-adapter port Palm-rest assembly M2x3 1

Solid-state drive Palm-rest assembly M2x2 1

System board Palm-rest assembly M2x2 Big Head 4

Touchpad bracket Palm-rest assembly M1.6x2 3

Touchpad Palm-rest assembly M1.6x2 2

Wireless-card bracket System board M2x3 1
