Procedure

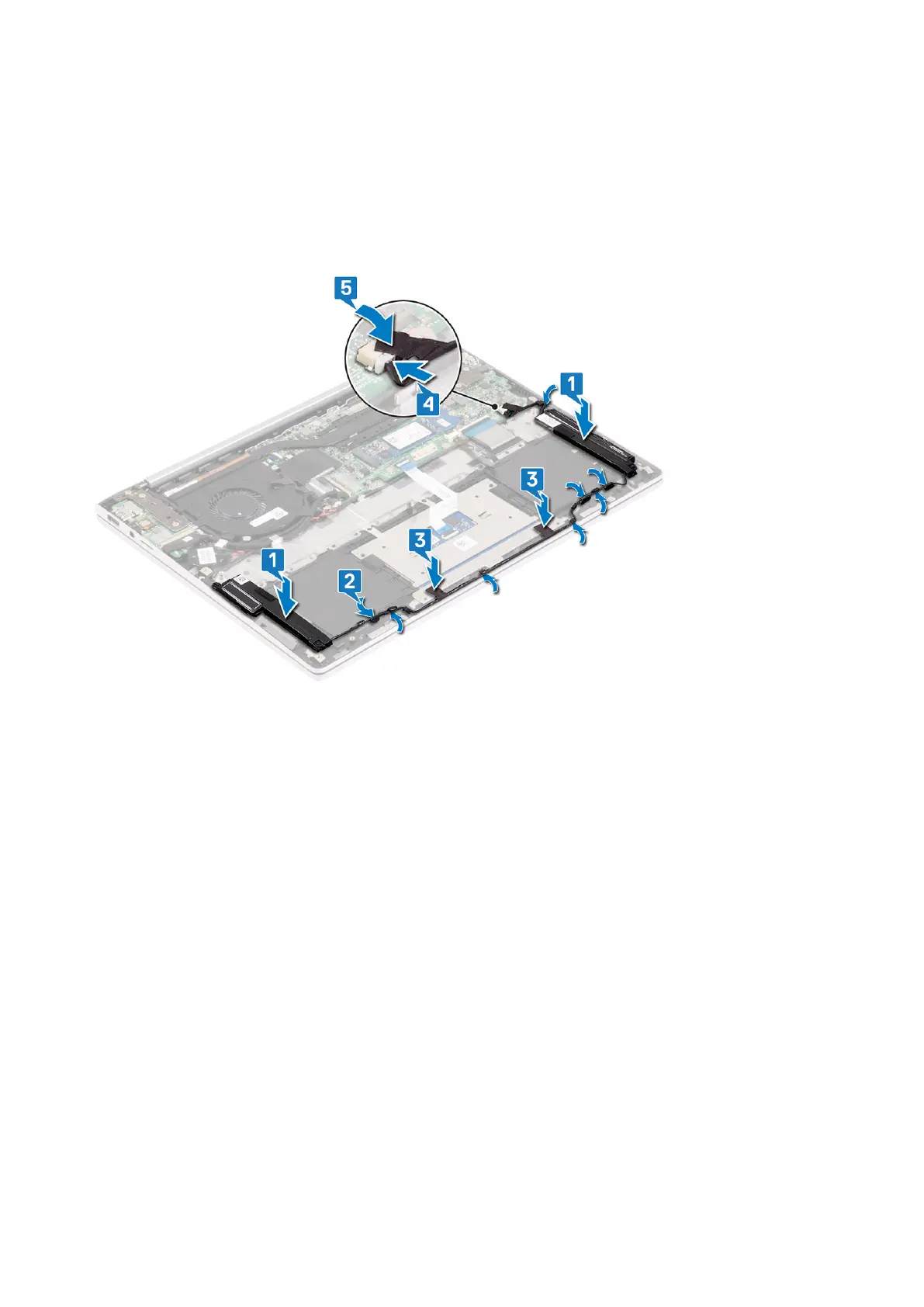

1. Using the alignment posts on the palm-rest assembly, place the speakers on the palm-rest assembly.
2. Route the speaker cable through the routing guides on the palm-rest assembly.
3. Adhere the tapes that secure the speaker cable to the touchpad bracket.
4. Connect the speaker cable to the system board.
5. Adhere the tape that secures the speaker cable to the connector.
Post-requisites
1. Replace the battery.
2. Replace the base cover.
44
Replacing the touchpad
