Removing the display assembly
NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow
the steps in Before working inside your computer. After working inside your computer, follow the instructions in After
working inside your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Prerequisites
1. Remove the base cover.
2. Remove the fan.
Procedure

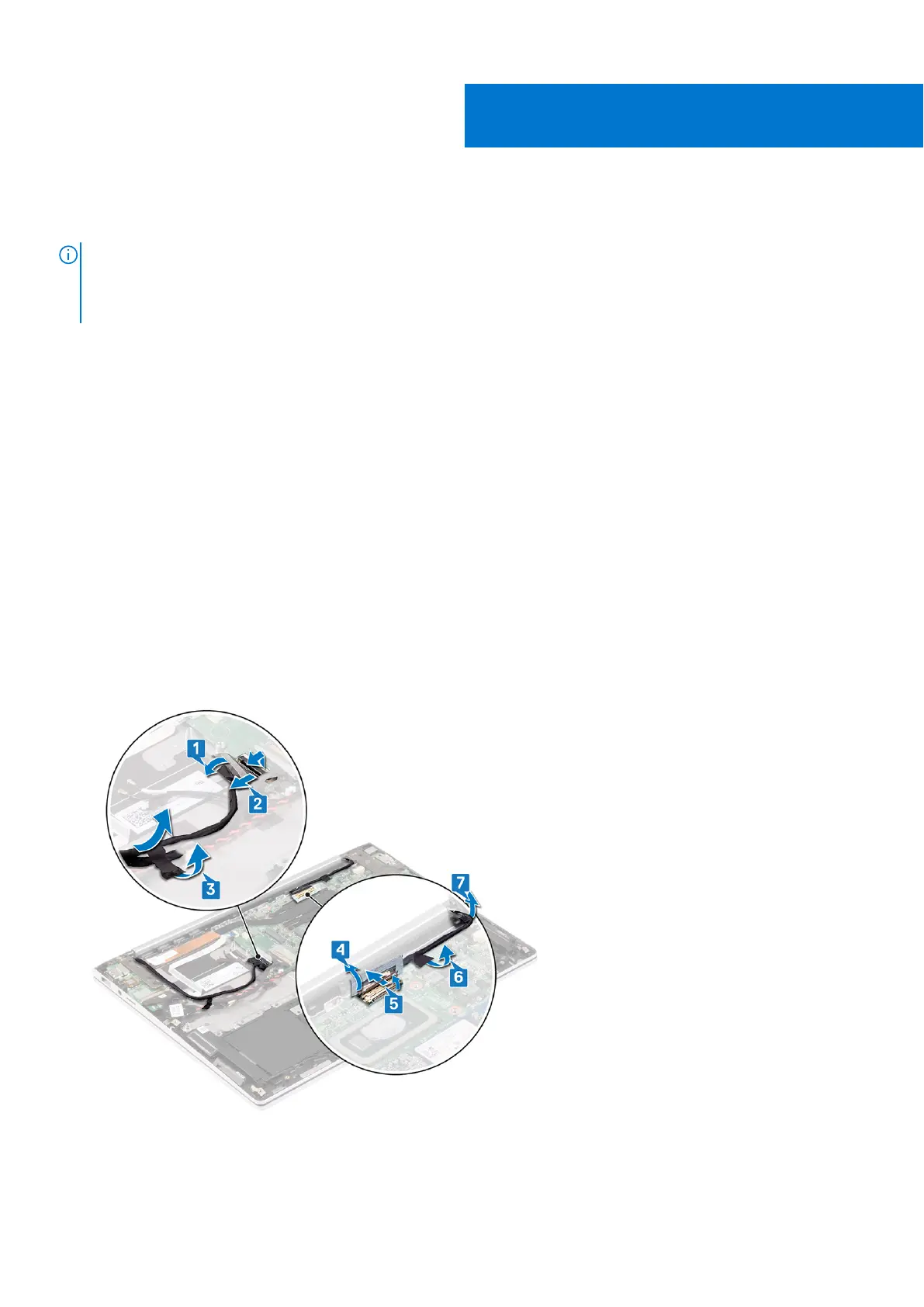

1. Peel the tape that secures the touchscreen-board cable to the system board.
2. Open the latch and disconnect the touchscreen-board cable from the system board.
3. Peel the tape to release the touchscreen-board cable and remove the cable from the routing guides on the palm-rest
assembly.
4. Peel the tape that secures the display cable to the system board.
5. Open the latch and disconnect the display cable from the system board.
6. Peel the tape that secures the display cable to the system board.
7. Remove the display cable from the routing guide on the palm-rest assembly.
8. Turn the computer over and open the display as far as possible.
