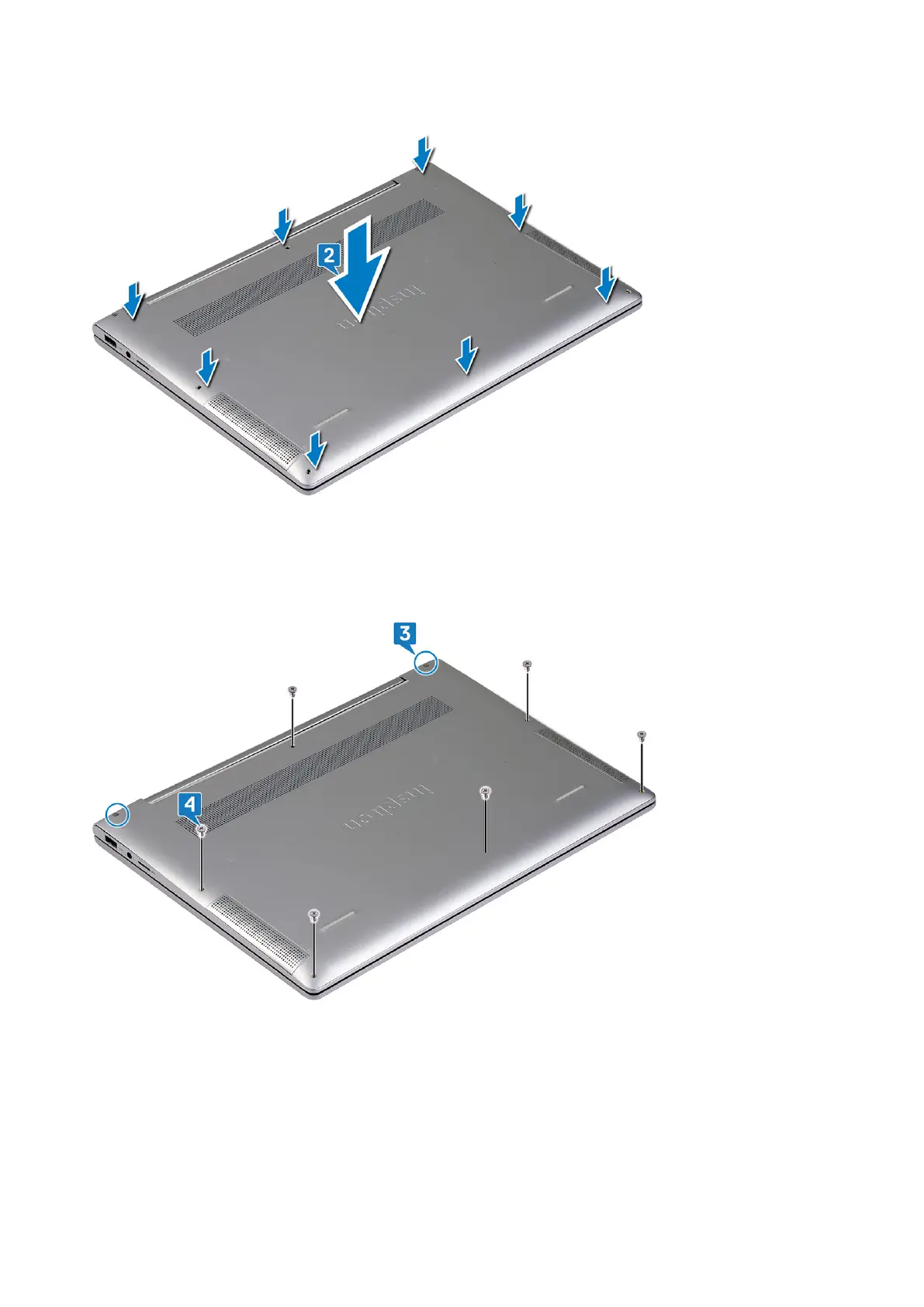

3. Tighten the two captive screws that secure the base cover to the palm-rest assembly.

4. Replace the six screws (M2x4) that secure the base cover to the palm-rest assembly.

Replacing the base cover

Main Page

Default Chapter3
