10. Replace the power-adapter port.

11. Replace the wireless card.

12. Replace the fan.

13. Replace the battery.

14. Replace the base cover.

Procedure

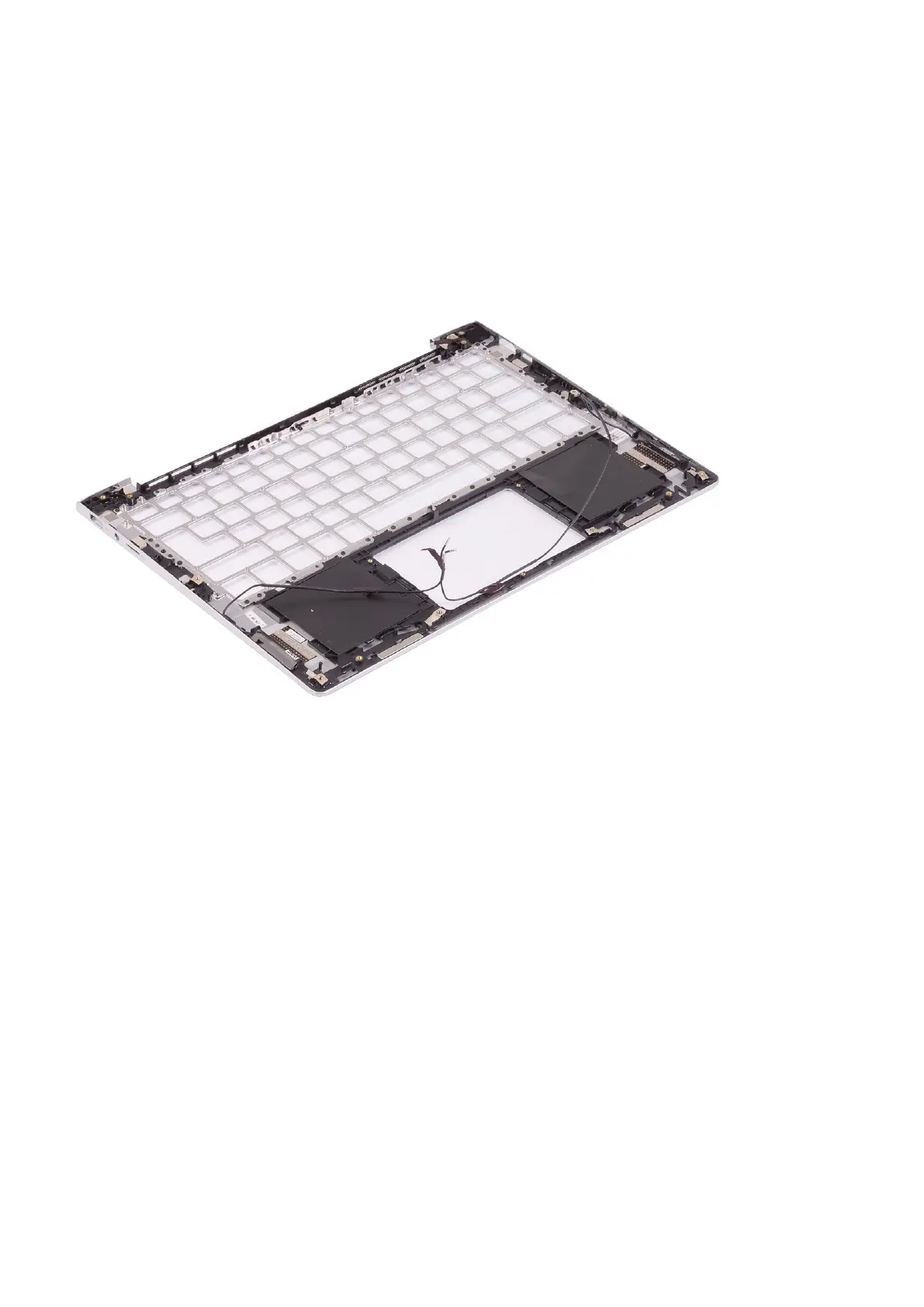

Place the palm rest on a flat surface.

Replacing the palm-rest and antenna assembly 71
