Dell P152G - Page 66

Steps

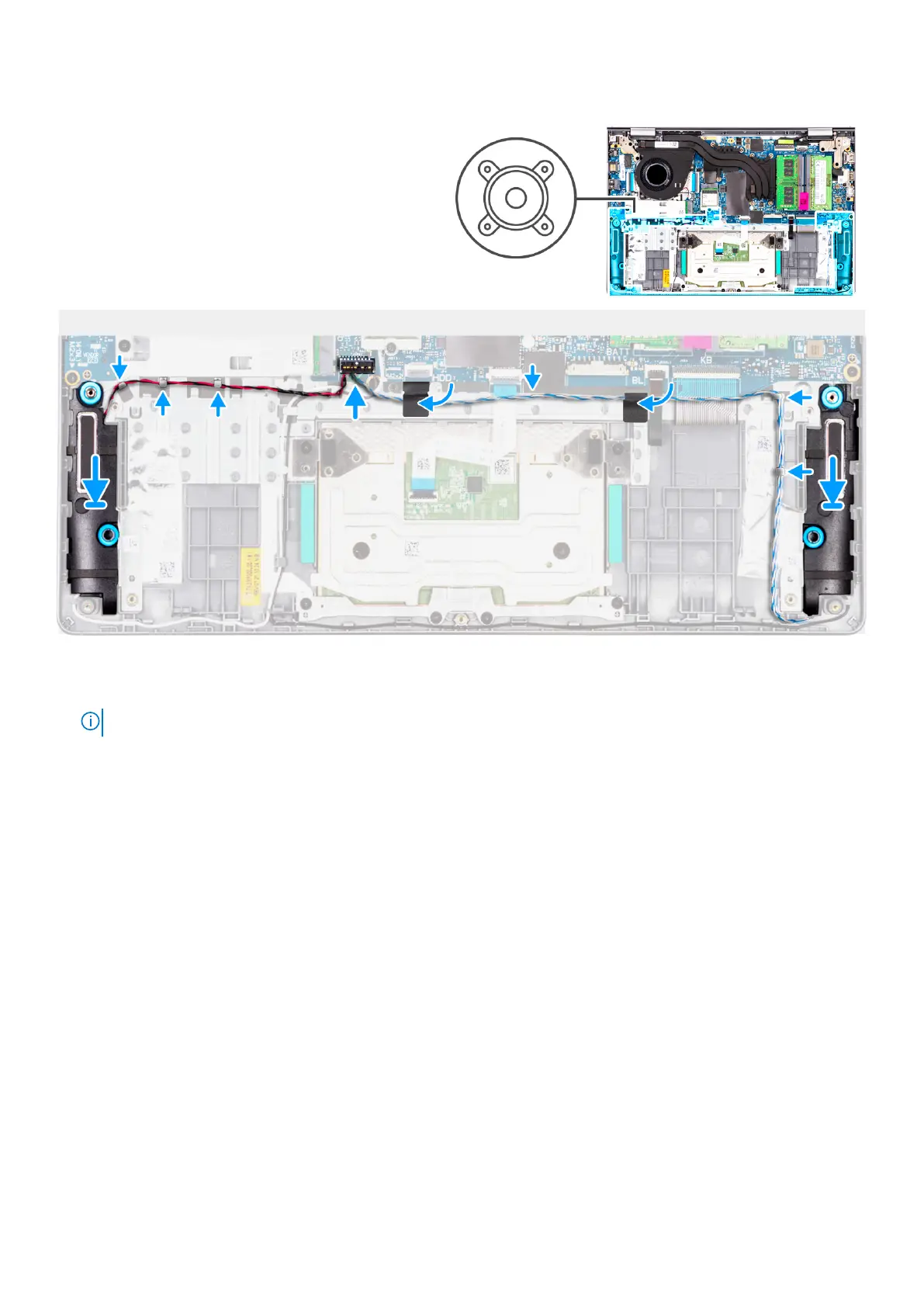

1. Using the alignment posts, place the speakers on the palm-rest and keyboard assembly.
NOTE: Ensure that the alignment posts are threaded through the rubber grommets on the speaker.
2. Route the speaker cable along the bottom side of the M.2 SSD and system board, and then along the left side of the left
speaker.
66
Removing and installing Field Replaceable Units (FRUs)
